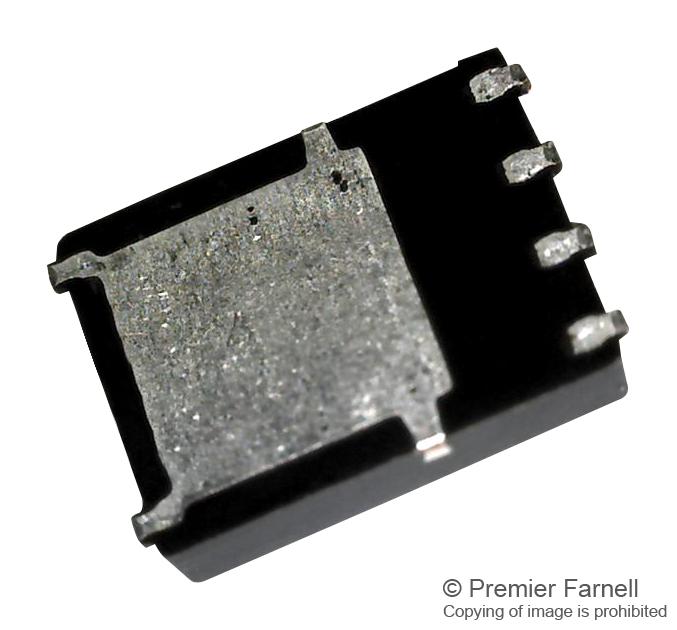

ONSEMI NTMFS0D8N02P1ET1G Power N-Channel MOSFET
The NTMFSOD8NO2P1E is a high-performance N-channel MOSFET designed for compact power applications such as DC-DC converters, load switches, and battery management. Featuring a small footprint of 6mm, it offers low Rds(on) to reduce conduction losses, and has low gate charge for efficient driver operation. Its high continuous drain current of 365A and low maximum drain-to-source voltage of 25V make it suitable for demanding power switching tasks, with excellent thermal characteristics and Pb-Free, halogen and BFR free compliance for reliable, eco-friendly operation.
ONSEMI NTMFS0D8N02P1ET1G Power N-Channel MOSFET Specifications:
- Drain-to-Source Voltage Voss: 25 V
- Continuous Drain Current at 25°C: 365 A
- Maximum Power Dissipation at 25°C: 139 W
- Power Dissipation at 85°C: 32 W
- Gate-to-Source Voltage Ves: ±12 V
- Gate Threshold Voltage Vgs(th): 1.2 V (min), 20 V (max)
- On Resistance Rds(on): 0.088 Ω @ 10 V, 0.054 Ω @ 4.5 V
- Input Capacitance Ciss: 8600 pF
- Output Capacitance Coss: 2285 pF
- Reverse Transfer Capacitance Crss: 129 pF
- Maximum Junction Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Case RθJC: 0.9 °C/W
- Thermal Resistance Junction-to-Ambient RθJA: 39 °C/W (steady state), 135 °C/W (note 2)
- Lead Soldering Temperature: 260°C for 10 seconds
Buy the ON Semiconductor Series N-Channel MOSFET: NTMFSOD8NO2P1E
Available now, the high-current N-channel MOSFET offers a compact design with low Rds(on) for efficient power switching in DC-DC converters, load switches, and battery management systems. It features a maximum voltage of 25V, continuous drain current of 365A, and low gate charge for energy-efficient operation. Its small footprint of 6mm makes it ideal for space-constrained applications. Certified Pb-Free, halogen and BFR free, it ensures eco-friendly operation while providing excellent thermal performance, making it an essential choice for demanding power electronics projects.
Buy ON Semiconductor NTMFSOD8NO2P1E now and experience unmatched reliability and high current handling for power switching applications.
Frequently Asked Questions
Where can I buy ONSEMI NTMFS0D8N02P1ET1G?
You can click on the BUY or RFQ button to purchase NTMFS0D8N02P1ET1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTMFS0D8N02P1ET1G?
You can download the NTMFS0D8N02P1ET1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTMFS0D8N02P1ET1G?
ONSEMI
