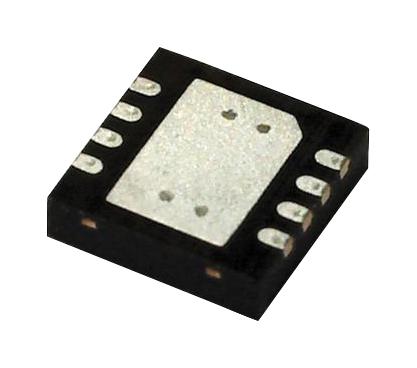

ONSEMI NUF2114MNT1G Audio EMI Filter
The NUF2114 is a compact, robust 2 line audio EMI filter with integrated ESD protection designed for speaker and audio applications. It provides over -30 dB attenuation from 900 MHz to 3.0 GHz, effectively reducing electromagnetic interference and static discharges. The device features a DFNS8, 2x2 mm package, with 10 discrete components internally, ensuring matching impedance and enhanced noise filtering in wireless phones, MP3 players, PDAs, digital cameras, and portable DVDs. It complies with IEC61000-4—2 Level 4 ESD standards, making it suitable for high-reliability sensitive audio equipment.
ONSEMI NUF2114MNT1G Audio EMI Filter Specifications:
- Package: DFNS8, 2x2 mm
- Maximum ESD Discharge: 30 kV (Contact) according to IEC61000-4-2
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -55°C to 150°C
- Maximum Lead Temperature for Soldering: 260°C for 10 seconds
- Resistance: 8.4 to 9.9 Ohms at 40 mA
- Capacitance per Diode: 51 to 66 pF
- Cut-Off Frequency: 50 MHz
- Leakage Current: approx. 4 µA at 12 V
- Steady-State Power per Resistor: 180 mW
- Steady-State Power per Package: 360 mW
- Reverse Voltage: -12 V
- Breakdown Voltage: 13.7 to 15.7 V
- Dimensions: 2 x 2 x 0.5 mm (case 506AA)
Buy the ON Semiconductor Series NUF2114 EMI Filter: NUF2114MNT1G
Enhance your audio equipment with the NUF2114 EMI filter, designed for high-frequency noise reduction and static discharge protection. Compact and durable, it provides superior electromagnetic interference suppression in speaker systems, wireless phones, MP3 players, PDAs, digital cameras, and portable DVDs. Its IEC61000-4—2 Level 4 ESD compliance ensures robust static discharge protection, making it ideal for high-reliability applications. With low capacitance and impedance matching features, this device guarantees improved audio clarity and device longevity. Purchase online today for seamless integration and optimal performance.
Buy ON Semiconductor NUF2114MNT1G now and experience unmatched reliability and high-frequency noise filtering for your audio and speaker applications.
Frequently Asked Questions
Where can I buy ONSEMI NUF2114MNT1G?
You can click on the BUY or RFQ button to purchase NUF2114MNT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NUF2114MNT1G?
You can download the NUF2114MNT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NUF2114MNT1G?
ONSEMI
