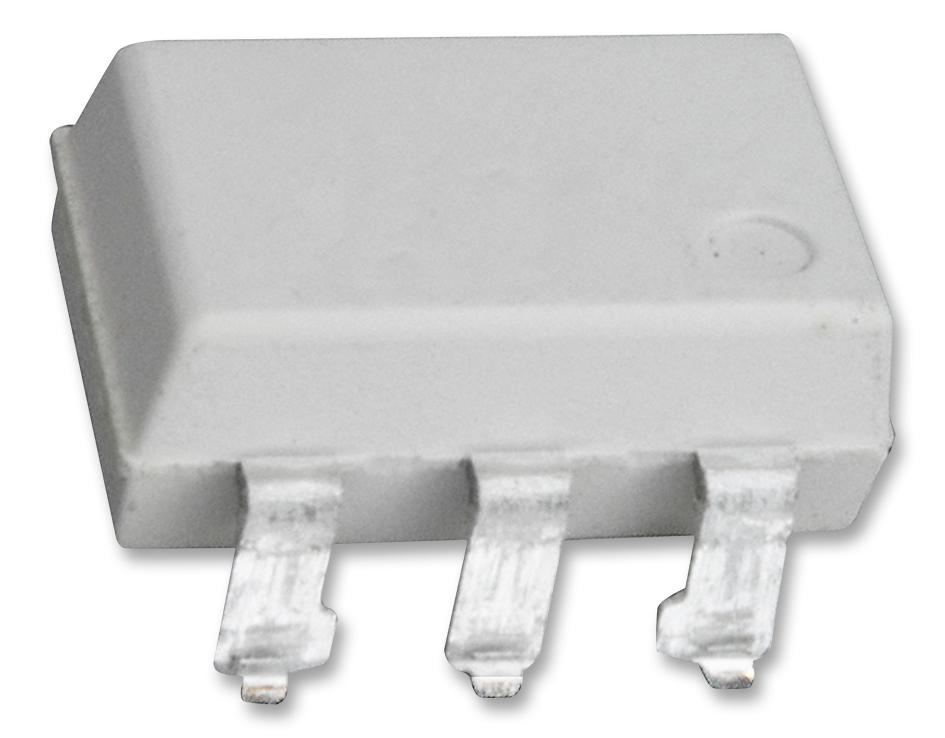

ONSEMI MOC3010SR2M High-Voltage Isolator
The MOC3010SR2M is a 6-pin DIP optocoupler designed for high-voltage isolation in industrial control systems. It features an infrared emitting diode coupled with a bilateral switch triac, providing safe electrical insulation within the specified ratings. Suitable for interfacing electronic controls with power triacs, it ensures reliable switching of resistive and inductive loads. Typical applications include motor control, static AC power switching, and traffic light control. Certified for safety standards such as UL1577 and DIN EN/IEC60747-5-5, it guarantees excellent isolation voltage and rugged performance in demanding environments.
ONSEMI MOC3010SR2M High-Voltage Isolator Specifications:
- Package Type: 6-pin DIP
- Peak Blocking Voltage: 250/400 Volt Peak
- Isolation Voltage: 4170 VAC for 1 Minute
- Maximum Operating Insulation Voltage: 850 Vpeak
- Input Forward Voltage: 1.15 to 1.50 V at 10mA
- Reverse Leakage Current: 0.01 to 100 BA at 3 V
- Trigger Current: 5 to 30 mA depending on model
- Output Voltage: 18 to 3.0 V at 100 mA
- Maximum Junction Temperature: 100°C
- Power Dissipation: 300-330 mW depending on model
- Operating Temperature Range: -40°C to +85°C
- Safety Certifications: UL1577, DIN EN/IEC 60747-5-5
Buy the Fairchild Series 6-Pin DIP Optocoupler: MOC3010SR2M
Enhance your electronic control systems with the high-voltage isolation capabilities of the Fairchild Series 6-Pin DIP Optocoupler MOC3010SR2M. This rugged, UL1577 and IEC certified device provides safe electrical insulation, making it ideal for motor control, AC power switching, and traffic light applications. Its excellent isolation voltage and robust design ensure dependable operation in demanding environments. Purchase online today for quick delivery and add reliable isolation to your industrial and automation projects with this high-performance optocoupler.
Order your Fairchild Series 6-Pin DIP Optocoupler MOC3010SR2M today and ensure reliable electrical isolation for your industrial control projects.
Frequently Asked Questions
Where can I buy ONSEMI MOC3010SR2M?
You can click on the BUY or RFQ button to purchase MOC3010SR2M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3010SR2M?
You can download the MOC3010SR2M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3010SR2M?
ONSEMI
