ONSEMI RS1K High-Speed Rectifier Diode
The RS1K is a high-speed, glass-passivated, surface-mount diode designed for fast rectification in electronic circuits. It features built-in strain relief, making it ideal for automated placement in industrial applications. The device handles a maximum repetitive reverse voltage of 1000V and provides a forward current of 1.0A at 100°C. With a storage temperature range from -55°C to +150°C and a junction temperature limit of +150°C, it offers reliable performance in high-voltage and high-temperature environments. Its small package eases soldering and integration into compact power supplies and industrial equipment.
ONSEMI RS1K High-Speed Rectifier Diode Specifications:
- Maximum Repetitive Reverse Voltage: 1000 V
- Average Rectified Forward Current: 1.0 A at Ta=100°C
- Non-Repetitive Peak Forward Surge Current: 30 A (8.3 ms)
- Storage Temperature Range: -55°C to +150°C
- Operating Junction Temperature: -55°C to +150°C
- Power Dissipation: 1.19 W
- Thermal Resistance Junction to Ambient: 105 °C/W
- Thermal Resistance Junction to Lead: 32 °C/W
- Forward Voltage: Vf at 1.0A typical value not specified, but generally around 1.0V
- Capacitance: 10 pF at f=1.0 MHz
- Package: DO-214AC (SMA)
- Dimensions: Refer to JEDEC DO-214AC standard, overall package length approximately 4.30 mm, width 2.50 mm, height 2.95 mm.

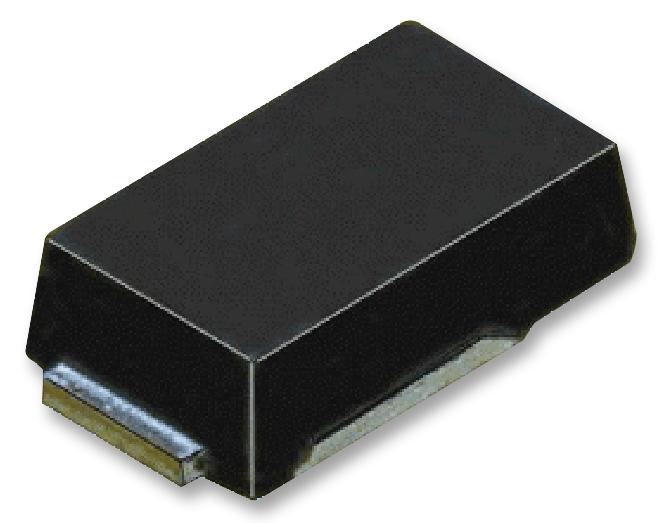

Buy the Fairchild RS1K – Reliable Rectifier for Industrial Applications
Purchase the Fairchild RS1K high-speed rectifier diode online today to enhance your industrial power supply reliability. This surface-mount device offers a maximum reverse voltage of 1000V and a forward current of 1.0A at 100°C, making it suitable for demanding applications. Its glass-passivated junction and built-in strain relief facilitate automated placement, reducing assembly time and cost. Compact and efficient, RS1K ensures stable operation under high-voltage and high-temperature conditions, ideal for power electronics, industrial automation, and high-speed rectification tasks.
Order your Fairchild Series RS1K high-speed surface-mount rectifier today and ensure dependable performance in your industrial power circuits.
Frequently Asked Questions
Where can I buy ONSEMI RS1K?
You can click on the BUY or RFQ button to purchase RS1K from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part RS1K?
You can download the RS1K datasheet or visit the ONSEMI website for support.
Who is the manufacturer of RS1K?
ONSEMI
