ONSEMI FGH75T65UPDF085 High Voltage Power IGBT
The FGH75T65UPD F085 is a 650V, 75A Field Stop Trench IGBT designed for high voltage and high current applications such as automotive chargers, solar inverters, and UPS systems. Utilizing novel Field Stop Trench technology, it offers low conduction and switching losses, high junction temperature tolerance of up to 175°C, and positive temperature coefficient for reliable parallel operation. RoHS compliant and qualified to automotive standards, it delivers high efficiency for demanding power conversion environments with low saturation voltage and high input impedance. This IGBT ensures excellent performance in digital power generators and auxiliary high-voltage systems.
ONSEMI FGH75T65UPDF085 High Voltage Power IGBT Specifications:
- Collector to Emitter Voltage: 650 V
- Gate to Emitter Voltage: +20 V
- Collector Current @ 25°C: 150 A
- Collector Current @ 100°C: 75 A
- Pulsed Collector Current: 225 A
- Diode Forward Current @ 25°C: 75 A
- Diode Forward Current @ 100°C: 50 A
- Pulsed Diode Max Forward Current: 225 A
- Maximum Power Dissipation @ 25°C: 375 W
- Maximum Power Dissipation @ 100°C: 187 W
- Operating Junction Temperature: -55 to +175°C
- Storage Temperature Range: -55 to +175°C
- Thermal Resistance Junction to Case (IGBT): 0.4°C/W
- Thermal Resistance Junction to Ambient (PCB Mount): 40°C/W
- Switching Delay Time: 32 ns, Rise Time: 43 ns, Fall Time: 39 ns
- Switching Loss: 4.8 mJ (Turn-On), 1.6 mJ (Turn-Off), Total: 5.3 mJ
- Gate charge: 385 to 578 nC
- Diode Forward Voltage: 24 to 26 V at 50 A
- Reverse Recovery Time: 43 to 85 ns
- Case Size: TO-247 package

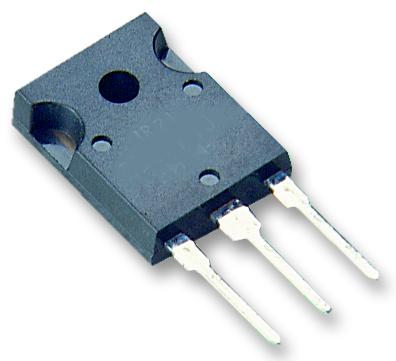

Buy the ON Semiconductor Series FGH75T65UP: 650V 75A Field Stop Trench IGBT
Purchase the ON Semiconductor FGH75T65UPD F085 today to enhance your power conversion projects. This high voltage, high current IGBT features low conduction and switching losses, excellent thermal stability up to 175°C, and is RoHS compliant. Its robust design ensures reliable operation in automotive chargers, solar inverters, UPS, and digital power generators. With high input impedance and tight parameter distribution, this IGBT guarantees efficiency, durability, and superior performance for demanding industrial applications. Optimize your power systems by ordering online now!
Get ON Semiconductor FGH75T65UPD F085 today—built for precision and long-lasting durability in high voltage power systems.
