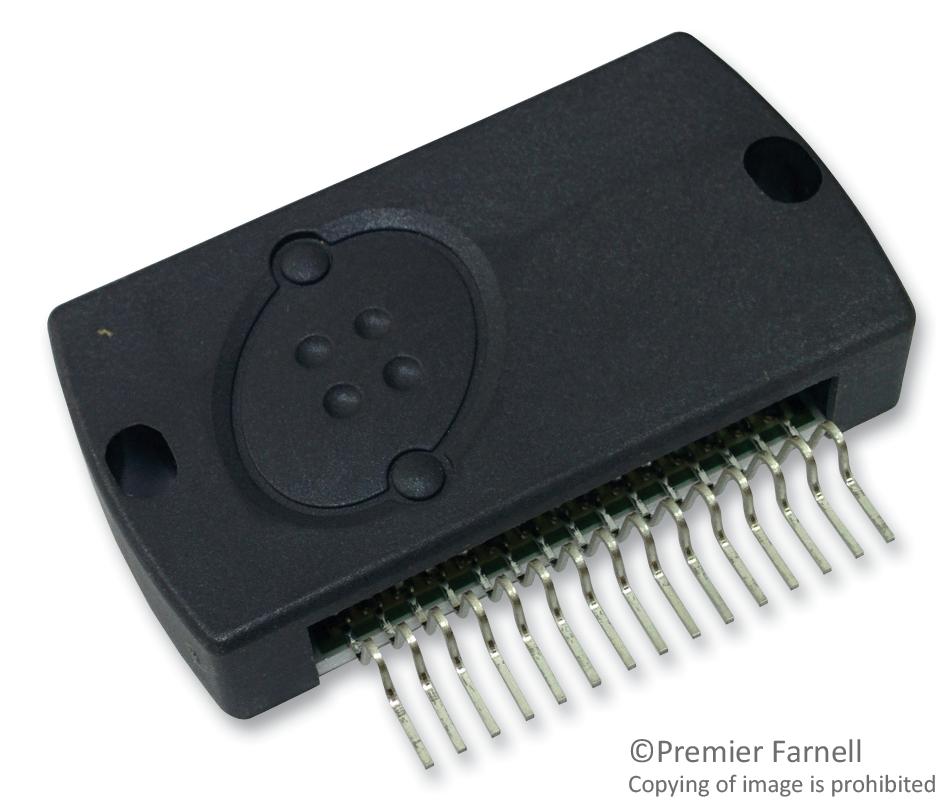

ONSEMI STK433060NE High-Power Audio Hybrid IC
The STK433-060N-E is a hybrid IC designed for high-power audio amplification, offering 60W per channel in class-AB configuration. It features pin-to-pin compatibility with other models in the series, a miniature package for easy installation, and recommendations for load impedance of 6Ω. Suitable for professional audio equipment, it supports standby and mute functions, with robust ratings ensuring reliable operation within temperature and voltage limits. Its compact design suits various high-fidelity audio applications, delivering high output power with minimal distortion and excellent thermal stability.
ONSEMI STK433060NE High-Power Audio Hybrid IC Specifications:
- Maximum power supply voltage Voc max (0): 238V
- Operating voltage Voc min: 0V
- Thermal resistance of power transistors: 42°C/W
- Junction temperature Tj max: 150°C
- Operating substrate temperature Tc max: 125°C
- Storage temperature Tstg: -30°C to +125°C
- Dimensions: 67.0mm x 25.6mm x 9.0mm
- Output Power: 60W per channel in class-AB configuration
- Load impedance: 6Ω recommended
- Allowable load shorted time: 0.3 seconds
- Maximum quiescent voltage Voc: 246V
- Recommended operating Voc: 227V
- Output load impedance: RL = 6Ω
- Total harmonic distortion: <0.4% at rated power
- Input impedance: 55kΩ
- Quiescent current: 15mA at no load
- Weight: Approx. 12g
Buy the ON Semiconductor Series Hybrid Audio Power Amplifier: STK433-060N-E
Enhance your audio systems with the high-power hybrid IC designed for professional-grade class-AB amplifiers. The STK433-060N-E delivers 60W per channel with minimal distortion, supporting features like standby and mute for versatile operation. Its compact size allows easy integration into various audio equipment, ensuring reliable performance and thermal stability. Perfect for creating powerful, clear sound in home theater, professional audio, and musical instrument systems. Purchase online now for fast delivery and superior audio quality in your projects.
Get ON Semiconductor STK433-060N-E today—built for high-power audio amplification with reliable thermal performance and versatile audio features.
Frequently Asked Questions
Where can I buy ONSEMI STK433060NE?
You can click on the BUY or RFQ button to purchase STK433060NE from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part STK433060NE?
You can download the STK433060NE datasheet or visit the ONSEMI website for support.
Who is the manufacturer of STK433060NE?
ONSEMI
