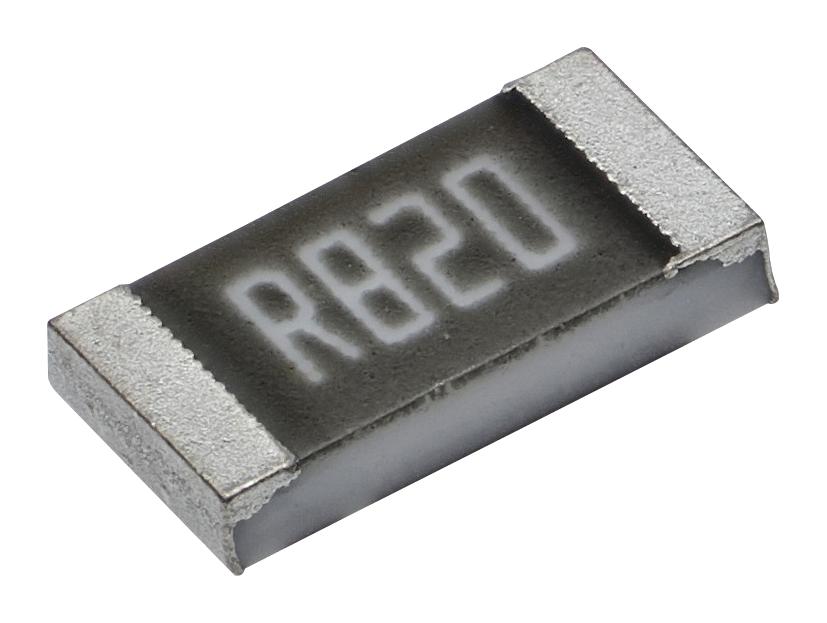

Ohmite KDV12DR560ET Low Resistance Chip Resistor
The KDV12 series is a high-precision, low-resistance metal film chip resistor suitable for industrial, power supply, battery management, electronic, telecommunication, and consumer electronics applications. It offers excellent long-term stability, high power capability, and halogen-free, RoHS compliance. Designed for precise current sensing, with models rated at 1/2W and resistance ranges from 50mΩ to 990mΩ, it operates within -55°C to +155°C, ensuring reliable performance across various demanding environments. Ideal for power electronics where low resistance and stability are critical.
Ohmite KDV12DR560ET Low Resistance Chip Resistor Specifications:
- Power Rating: 1/2W
- Resistance Range: 50mΩ to 990mΩ
- Operating Temperature Range: -55°C to +155°C
- TCR: +125°C ±50ppm/°C
- Max. Overload Current: 7.07A
- Max. Overload Power: 0.5W
- Material: Metal film
- Humidity Resistance: 100V for 1 minute, 10GΩ insulation resistance
- Solderability: 95% coverage, no visible damage at 245°C for 3-5 seconds
- Storage Time: Up to 1 year at 25°C and 60-220% humidity
- Reflow Soldering: Peak temperature 260°C, 10 sec reflow profile
- Temperature Coefficient: +125°C, 50ppm/°C typical
- Durability tested under thermal cycling, humidity, and load conditions
Buy the Buy Metal Film Low-Resistance Chip Resistor Part Number KDV12DR560ET Online
Order the Metal Film Low-Resistance Chip Resistor KDV12DR560ET online and enjoy superior performance for your industrial, power, or telecommunication needs. This high-precision resistor offers excellent long-term stability, low temperature coefficient, and RoHS compliance, making it ideal for sensitive current sensing and power management applications. Featuring a resistance of 560mΩ and rated at 1/2W, it ensures reliable operation across temperatures from -55°C to +155°C. Efficient reflow soldering and excellent durability make installation straightforward and durable for demanding environments. Purchase now for quality assurance and improved circuit performance.
Buy Metal Film Low-Resistance Chip Resistor KDV12DR560ET now and experience unmatched precision, stability, and reliability in your power electronics projects.
Frequently Asked Questions
Where can I buy Ohmite KDV12DR560ET?
You can click on the BUY or RFQ button to purchase KDV12DR560ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part KDV12DR560ET?
You can download the KDV12DR560ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of KDV12DR560ET?
Ohmite
