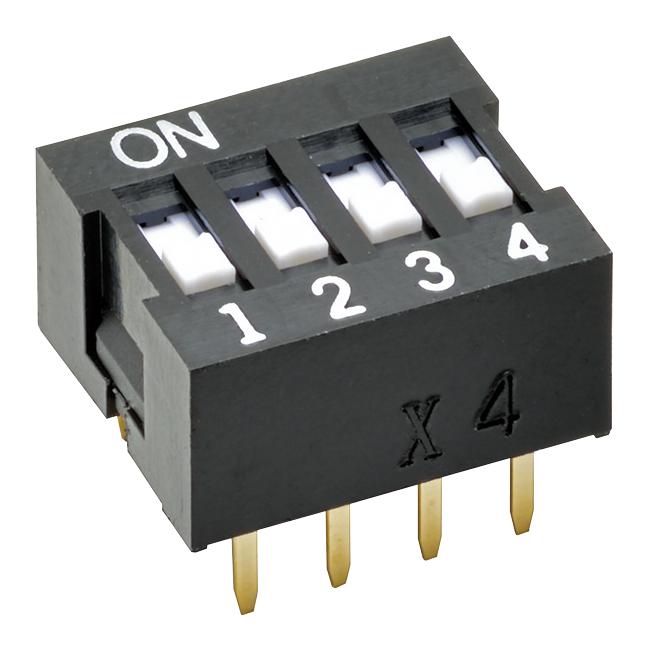

OMRON ELECTRONIC COMPONENTS A6E4101N slide DIP switch
The slide DIP switch features gold-plated twin contacts for high reliability and is available with both ON and OFF soldering options. Designed for through-hole mounting, it offers a range of models with varying poles from 2 to 10, suitable for industrial and electronic control applications. It operates at 3.5 VDC, withstands a dielectric strength of 600 VAC, and has an ambient operating temperature of 20 to 70°C. Its robust construction ensures durability for up to 1,000 operations, with an IP40 degree of protection. Ideal for automation systems, control panels, and electronic devices requiring reliable switching.
OMRON ELECTRONIC COMPONENTS A6E4101N slide DIP switch Specifications:
- Poles: 2 to 10 poles depending on model
- Rated resistance: 3.5 VDC
- Operating temperature: 20°C to +70°C
- Humidity: 35% to 95%
- Insulation resistance: 100 MΩ min at 250 VDC
- Contact resistance: 200 mΩ max initial
- Dielectric strength: 600 VAC for 1 min
- Vibration resistance: 10 to 55 Hz, 1.5-mm double amplitude
- Shock resistance: 300 m/s² min
- Durability: 1,000 operations min
- Degree of protection: IEC IP40
- Operating force: 0.29 to 9.8 N
- Weight: 0.43 g to 1.82 g depending on pole count
- Dimensions vary according to number of poles and actuator type
Buy the OMRON Age-4101 High-Performance Switch for Industrial Applications
Order the OMRON age-4101 slide DIP switch online today—designed for reliable switching in industrial electronics. Features gold-plated contacts, multiple poles, and robust construction to ensure durability in control panels and automation systems. Easy to install with through-hole mounting, supporting resistive loads up to 3.5 VDC. Its high insulation resistance and dielectric strength guarantee safety and performance. Ideal for electronic control, automation, and industrial equipment, this switch provides dependable operation for vital systems with a maximum of 1,000 switching cycles, perfect for demanding environments.
Get OMRON age-4101 today—built for precision and long-lasting durability for control panel and automation systems.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS A6E4101N?
You can click on the BUY or RFQ button to purchase A6E4101N from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part A6E4101N?
You can download the A6E4101N datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of A6E4101N?
OMRON ELECTRONIC COMPONENTS
