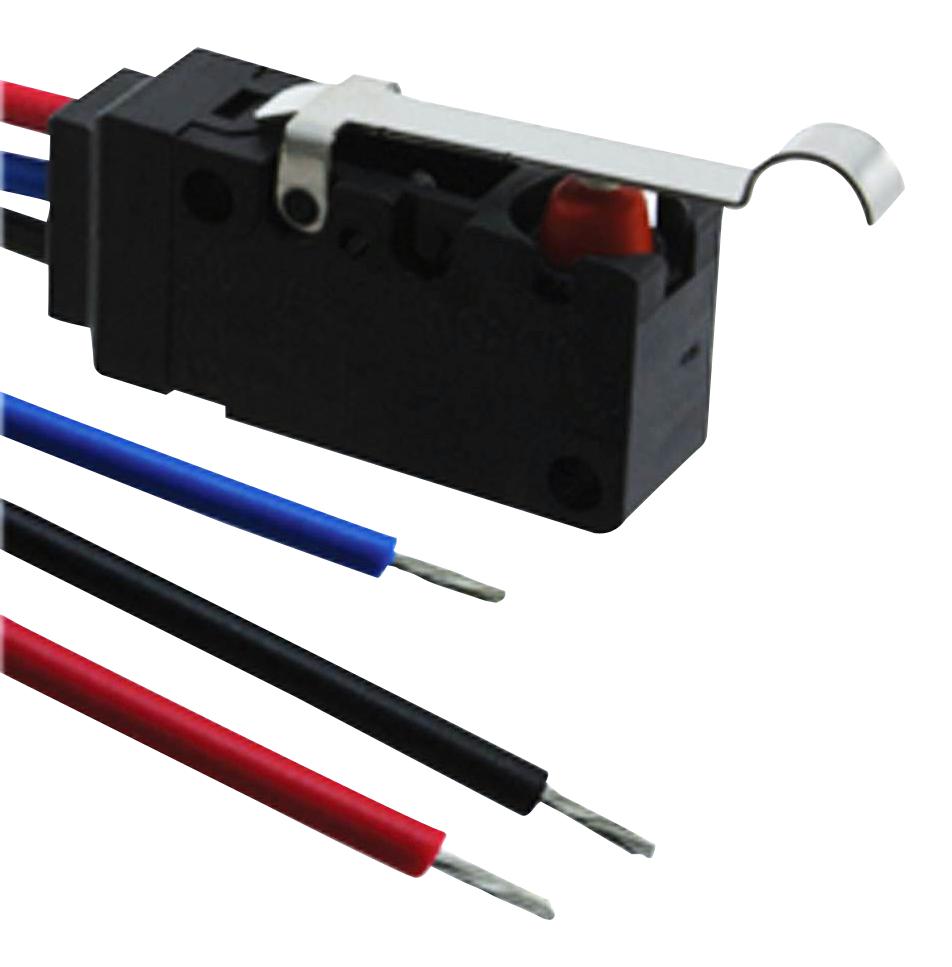

OMRON ELECTRONIC COMPONENTS D2VW01L33HS Miniature Sealed Switch
The D2VW sealed miniature basic switch offers IP67 environmental resistance, making it ideal for applications exposed to water spray, dust, and harsh conditions. It features a stable epoxy resin seal, high precision internal mechanism, and various actuator options such as pin plunger, hinge lever, and roller lever. Suitable for automotive, agricultural, and industrial equipment, it complies with RoHS standards. The switch supports multiple contact and terminal configurations, with ratings up to 250 VAC 5A, making it reliable for resistive loads and micro load circuits with compact size and durable construction.
OMRON ELECTRONIC COMPONENTS D2VW01L33HS Miniature Sealed Switch Specifications:
- Degree of Protection: IP67 (excluding terminals on terminal models)
- Contact Form: SPDT, SPST-NC, SPST-NO
- Ratings: 250 VAC 5A, 30 VDC 0.1A, 125 VAC 1A, 30 VDC 1A
- Actuators: Pin plunger, hinge lever, roller lever, simulated roller lever
- Terminals: Solder terminals, molded lead wires (300 mm or 1000 mm)
- Operating Frequency: Mechanical 300 operations/min, Electrical 60 operations/min
- Insulation Resistance: 700 MΩ (600V DC, insulation test)
- Dielectric Strength: 4,800 VAC 50/60Hz for 1 min between terminals and non-current parts
- Temperature Range: -55°C to +85°C
- Degree of Protection (body): IP67
- Weight: Approx. 7 g (pin plunger models with terminals)
- Soldering Temperature: 350-400°C within 5 seconds
- Mounting: M3 screw with plane or spring washers, torque 0.39-0.59 N-m
- Compliance: RoHS, UL/cUL approved models available
- Use of epoxy resin ensures stable sealing, making this switch ideal for water spray and dust environments.
Buy the Omron Series D2VW Sealed Miniature Switch: D2VW01L33HS
Purchase the Omron Series D2VW sealed miniature switch online today and benefit from its robust IP67 sealing, high durability, and versatile actuator options. Perfect for demanding industrial, automotive, and agricultural applications, this switch guarantees dependable operation under water spray, dust, and extreme temperatures. Its compact design, RoHS compliance, and UL/cUL approved models ensure safety and compatibility with various systems. Buy now to enhance your project's environmental resistance and operational reliability, and enjoy fast delivery and expert support for your electronic and control system needs.
Order your Omron Series D2VW01L33HS sealed miniature switch today and ensure reliable performance in challenging environments with IP67 protection.
