OMRON ELECTRONIC COMPONENTS G6B1114PFDUSP6BDC24 PCB Power Relay
The G6B series PCB power relay is designed for high capacity and high dielectric strength, featuring sealed construction and various contact configurations including SPST-NO, DPST-NO, and more. It offers UL, CSA, and EN/EC certifications, with ratings up to 5A (8A) at 250VAC, and dielectric strength of 3,000VAC between coil and contacts. Suitable for control equipment output, these relays feature ultrasonic cleanability, operation indicator, surge absorption diode, and robust construction for reliable power switching in industrial automation.
OMRON ELECTRONIC COMPONENTS G6B1114PFDUSP6BDC24 PCB Power Relay Specifications:
- Rated load: 5A at 250 VAC, 8A at 250 VAC (UL/CSA certified)
- Dielectric strength: 3,000VAC between coil and contacts
- Contact material: AgSnIn (suitable for surge loads)
- Coil voltage: 5VDC, 6VDC, 12VDC, 24VDC
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Switching capacity: resistive load up to 5A, inductive load supported with -FD type
- Impulse withstand voltage: 6kV
- Vibration resistance: Destruction at 10 to 55 Hz, 0.75 mm amplitude
- Shock resistance: 1,000 m/s²; Malfunction at 300 m/s²
- Operating temperature: -25°C to 70°C, Humidity: 5% to 85%
- Dimensions: varies by model with PCB mounting holes, typical hole size 1.1mm, spacing as per socket type
- Compliance: UL, CSA, EN/EC, TUV certified

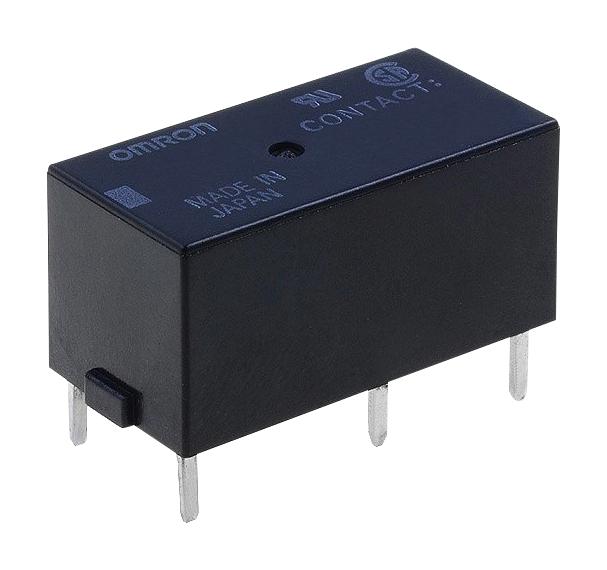

Buy the Omron Series G6B PCB Power Relay: G6B1114PFD-US
Discover the high-capacity Omron G6B PCB power relay, designed for industrial control applications. With UL, CSA, and EN certifications, it offers excellent dielectric strength, surge absorption, ultrasonic cleanability, and a variety of contact configurations. Easily connect with compatible sockets to ensure reliable switching of power loads up to 8A at 250VAC. Ideal for automation equipment, control panels, and power switching systems, this relay ensures long-lasting performance and safety. Purchase online today for fast delivery and technical support.
Get Omron G6B1114PFD-US today—built for power switching in industrial automation and control systems with high reliability and durability.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS G6B1114PFDUSP6BDC24?
You can click on the BUY or RFQ button to purchase G6B1114PFDUSP6BDC24 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part G6B1114PFDUSP6BDC24?
You can download the G6B1114PFDUSP6BDC24 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of G6B1114PFDUSP6BDC24?
OMRON ELECTRONIC COMPONENTS
