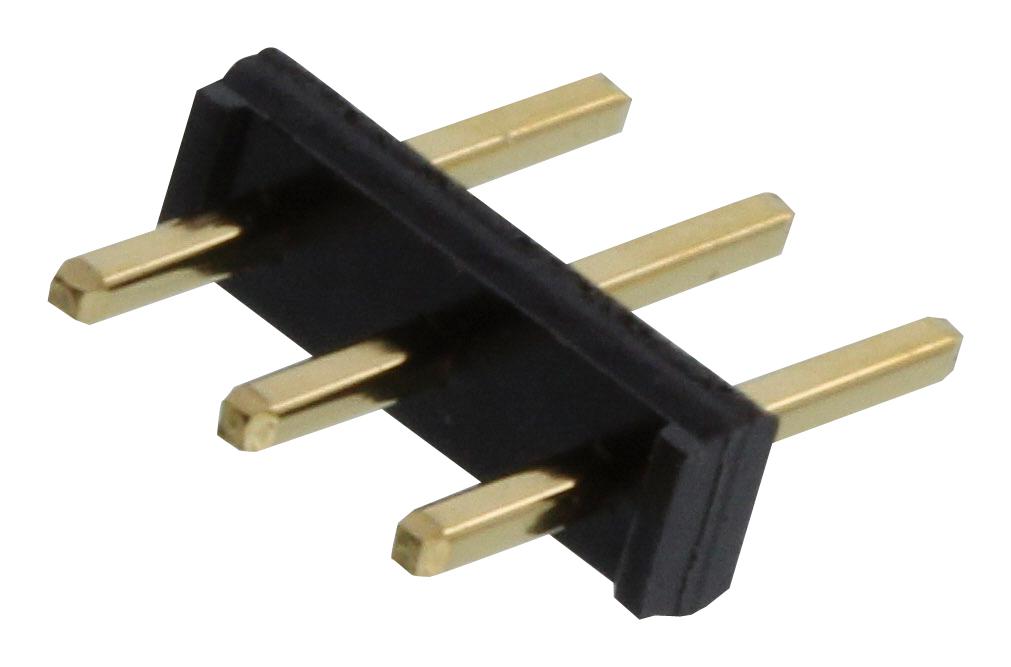

OMRON ELECTRONIC COMPONENTS XJ8D0311 Jumper Connector
The XJ8D series jumper plugs are low-profile, cost-effective connection components designed for easy insertion into high-density circuits. These multi-row jumper plugs feature reliable 2-point contacts, flame-resistant housing, and accommodate flexible wiring with through-holes. Suitable for horizontal or vertical mounting on 2.54 mm grid spacing, they are available in various configurations from single to triple-row models, ensuring durable performance up to 105°C, with gold or tin plating. Designed for reliable electrical contact and insulation, these connectors are ideal for compact electronic assemblies requiring quick and secure connections.
OMRON ELECTRONIC COMPONENTS XJ8D0311 Jumper Connector Specifications:
- Housing Material: Fiber-glass reinforced PPS or PBT resin (UL94 V-0)
- Contacts Material: Phosphor bronze or brass with 0.15-1μm gold or 2.0-μm tin plating
- Rated Voltage: 2A
- Rated Current: 300 VAC
- Contact Resistance: 20 mΩ max at 20 mV, 100 mA
- Insulation Resistance: 1,000 MΩ min at 500 VDC
- Dielectric Strength: 750 VAC for 1 minute
- Operating Temperature: -55°C to +105°C
- Mounting: Vertical or horizontal on 2.54 mm grid
- Wire Gauge: Handles 0.8-mm wire through-holes
- Insertion/Removal Durability: 50/20 times
- Orientation: Single, double, or triple-row configurations
- RoHS Compliant, UL Listed
Buy the Buy OMRON Jumper Plugs Part Number XJ8D0311 Online
Purchasing the OMRON XJ8D jumper connector online allows you to access high-quality, reliable circuit connection components that are ideal for dense electronic assemblies. These low-profile, multi-row jumper plugs facilitate quick installation and secure connections, making them perfect for applications requiring efficient space utilization. With flame-resistant housing and a variety of configurations, these connectors provide durability and safety. Start your order today and ensure your projects benefit from dependable, well-engineered electronic interconnections designed for technical precision and quality.
Order your OMRON Series XJ8D jumper plug today and enjoy quick, reliable electrical connections for compact electronic circuits.
Frequently Asked Questions
Where can I buy OMRON ELECTRONIC COMPONENTS XJ8D0311?
You can click on the BUY or RFQ button to purchase XJ8D0311 from an authorized OMRON ELECTRONIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part XJ8D0311?
You can download the XJ8D0311 datasheet or visit the OMRON ELECTRONIC COMPONENTS website for support.
Who is the manufacturer of XJ8D0311?
OMRON ELECTRONIC COMPONENTS
