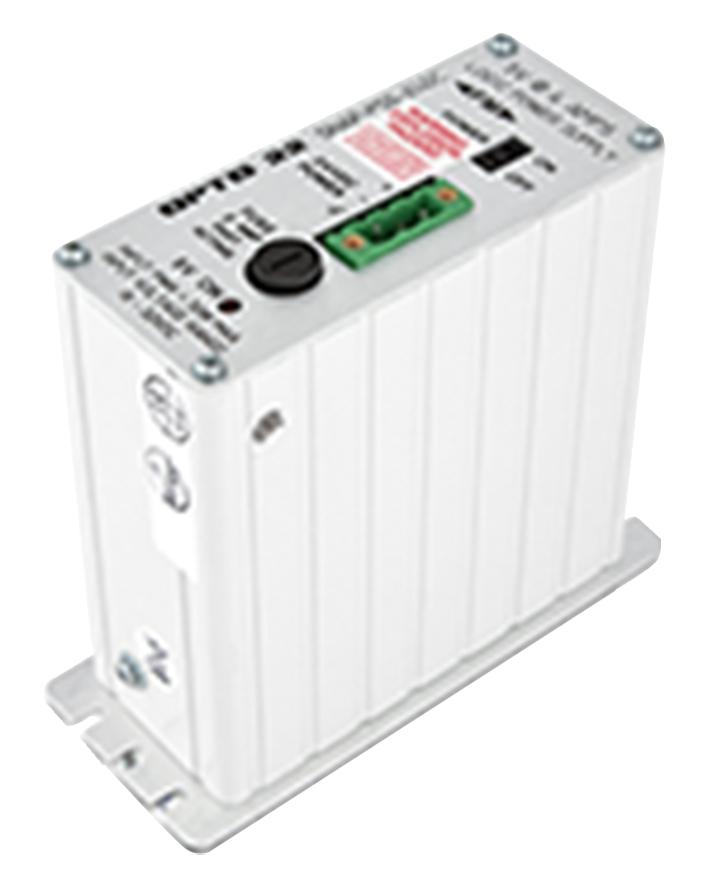

OPTO 22 SNAPPS524DC Power Supply
The SNAP-PS5-24DC is a compact, reliable DIN rail-mounted power supply providing 5V DC output with a maximum load of 4A. It requires a 24V DC input and is suitable for systems with DC backup power. Features include a built-in fuse, an LED status indicator, and an ON/OFF power switch for easy operation. It is designed to supply power to microprocessor-based control racks, including SNAP PAC and compatible controllers, I/O modules, and legacy systems requiring 5V DC. The unit offers easy connections, a wide input voltage range, and optional panel or DIN rail mounting, making it ideal for industrial automation, process control, and testing applications.
OPTO 22 SNAPPS524DC Power Supply Specifications:
- Input Voltage: 18-32 VDC
- Output Voltage: 5.1 +0.1 VDC
- Output Current: 4.0A
- Dimensions: 2.00 inches (50.79mm) width, 4.83 inches (124.20mm) length
- Weight: 15.02 oz (425.25 g)
- Operating Temperature: -20 to 70 °C
- Storage Temperature: -30 to 85 °C
- Fuse: Internal, model SNAP-FUSE2AB
- Agency Approvals: FM, CE, RoHS, DFARS
- Warranty: 30 months
Buy the Buy Opto 22 SNAP Power Supply Part Number SNAPPS524DC Online
Enhance your automation system with the Opto 22 SNAP-PS5-24DC power supply. Designed for industrial environments, it provides a stable 5V DC output with a 4A maximum load. Its compact DIN rail mounting, built-in fuse, LED indicator, and wide input voltage range ensure dependable operation for controlling racks, I/O modules, and legacy systems. Easy connections and robust construction make it perfect for process control, testing, and automation projects. Secure yours online for quick deployment and reliable performance.
Get Opto 22 SNAP-PS5-24DC today—built for reliable system power and easy DIN rail mounting.
