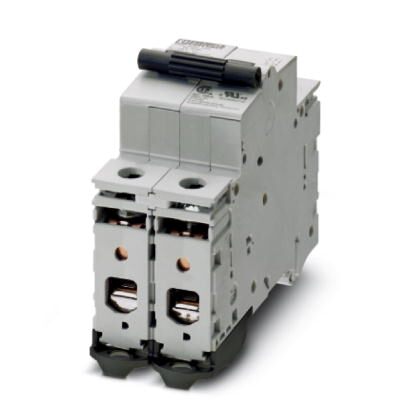

Phoenix Contact 0902247 Thermal Magnetic Circuit Breaker
This two-pole thermomagnetic circuit breaker rated at 16 A is designed for DIN rail mounting, offering reliable overload and short-circuit protection. It is UL recognized under standard 1077 and features a thermal trip mechanism for dependable operation. An optional auxiliary contact allows remote signaling in S or H functions, making it suitable for controlling and protecting power supplies, motors, and control circuits. Its rugged construction, rated at 240V AC, ensures durability and consistent performance in industrial and commercial electrical systems, adhering to safety standards and offering ease of installation.
Phoenix Contact 0902247 Thermal Magnetic Circuit Breaker Specifications:
- Configuration: Two-pole
- Current Rating: 16 A
- Voltage Rating: 240V AC
- Mounting: DIN rail
- Recognition: UL 1077
- Protection Level: IP 20
- Trip Characteristic: Thermal magnetic trip
- Contacts: Optional auxiliary contact for remote signaling
- Standards Compliance: UL recognized, CSA approved, CE mark
- Temperature Range: -25°C to +55°C
- Weight: 70g
- Material: Plastic housing with copper contacts
- Rated Wire Sizes: 2.5 mm² / 14 AWG
- Endurance: 10,000 operations electrical, 20,000 mechanical
- Vibration Resistance: 3 g
- Dimensions: compact size suitable for DIN rail mounting
Buy the Phoenix Series TMC 60 Thermal Magnetic Circuit Breaker: 0902247
Order the Phoenix Series TMC 60 two-pole 16A thermal magnetic circuit breaker online today for dependable overload and short-circuit protection. Designed for DIN rail mounting, it features UL recognition, an optional auxiliary contact for remote signaling, and robust construction for long-lasting performance. Ideal for safeguarding power supplies, motors, and control circuits in industrial applications. Easy to install and maintain, this breaker ensures safety and reliability, meeting industry standards and providing peace of mind in critical electrical systems.
Get Phoenix Series TMC 60 thermal magnetic circuit breaker today—built for reliable overload and short-circuit protection in industrial systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 0902247?
You can click on the BUY or RFQ button to purchase 0902247 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 0902247?
You can download the 0902247 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 0902247?
Phoenix Contact
