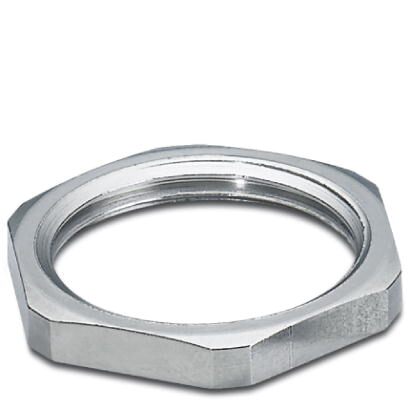

Phoenix Contact 1411242 Counter Nut M20
The Phoenix Contact 1411242 counter nut is a crucial component for securing threaded connections, particularly those utilizing M20 x 1.5 threads. Manufactured from durable brass and finished with a nickel plating, this counter nut provides excellent corrosion resistance and a professional appearance. Its robust construction ensures reliable performance in demanding industrial environments, such as machinery, electrical enclosures, and automation systems. The counter nut's design allows for easy installation and tightening, contributing to efficient assembly processes. It is compatible with a variety of applications requiring secure and dependable fastening solutions.
Phoenix Contact 1411242 Counter Nut M20 Specifications:
- Packing unit: 1 pc
- GTIN: 4046356923736
- Weight per Piece (excluding packing): 5.000 g
- Custom tariff number: 74153300
- Country of origin: Germany
- Length: 3 mm
- Connecting thread diameter: 20 mm
- Wrench size, counter nut: 24 mm
- Hexagon angular dimension: 27 mm
- Ambient temperature (operation): -70 °C ... 220 °C
- Material: Brass, nickel-plated
- Thread type on connection side: M20 x 1.5
- Color: silver
- Halogen-free: yes
- China RoHS: Environmentally Friendly Use Period = 50
- eCl@ss 10.0.1: 27144424
- eCl@ss 4.0: 27141200
- eCl@ss 4.1: 27141200
- eCl@ss 5.0: 27149100
- eCl@ss 5.1: 27149100
- eCl@ss 6.0: 27149100
- eCl@ss 7.0: 27069219
- eCl@ss 8.0: 27069219
- eCl@ss 9.0: 27144424
- ETIM 4.0: EC000032
- ETIM 5.0: EC000129
- ETIM 6.0: EC000940
- ETIM 7.0: EC000940
- UNSPSC 13.2: 31161716
- UNSPSC 18.0: 31161716
- UNSPSC 19.0: 31161716
- UNSPSC 20.0: 31161716
- UNSPSC 21.0: 31161716
