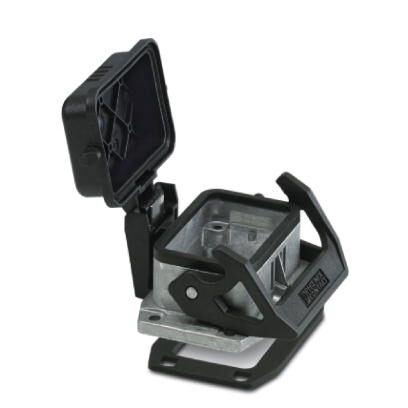

Phoenix Contact 1411319 B6 Panel Mounting Base
The PHOENIX CONTACT HC-STA-B06-BWSC-ELC-AL is a HEAVYCON B6 panel mounting base, ideal for demanding industrial environments. Constructed from saltwater-resistant aluminum, this base offers exceptional durability and corrosion resistance. The single locking latch ensures a secure connection, while the flat gasket provides a reliable seal. It's compatible with HC-B6, BB10, DD24, and M contact inserts, making it versatile for various applications requiring robust and reliable power and signal transmission. Its robust design and excellent shielding make it suitable for applications exposed to electromagnetic interference.
Phoenix Contact 1411319 B6 Panel Mounting Base Specifications:
- packing_unit: 1 pc
- gtin: 4046356927208
- weight_per_piece: 120.000 g
- custom_tariff_number: 85389099
- country_of_origin: China
- height: 30.5 mm
- width: 53 mm
- length: 80.5 mm
- assembly_cutout_length: 52 mm
- assembly_cutout_width: 35 mm
- degree_of_protection_ip: IP66
- ambient_temperature_operation: -40 °C ... 125 °C
- note: For contact inserts HC-B6, BB10, DD24, M
- size: B6
- housing_type: Panel mounting base
- color: gray aluminum
- locking_type: with single locking latch
- torque: 1.5 Nm ... 2 Nm
- screw_connection: none
- protective_cover: yes
- housing_material: Die-cast aluminum, salt water resistant
- housing_surface_material: uncoated
- seal_material: NBR, conductive
- material_lock: PA
- material_protective_cover: PA
- china_roh: Environmentally friendly use period: unlimited
- hazardous_substances: No hazardous substances above threshold values
- ecl_10_0_1: 27440202
- ecl_5_1: 27261200
- ecl_6_0: 27261200
- ecl_7_0: 27440202
- ecl_8_0: 27440202
- ecl_9_0: 27440202
- etim_4_0: EC000437
- etim_5_0: EC000437
- etim_6_0: EC000437
- etim_7_0: EC000437
- unspsc_13_2: 31261501
