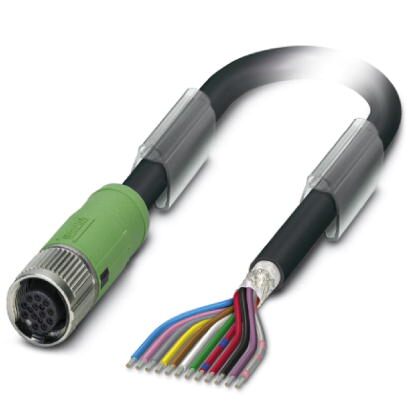

Phoenix Contact 1430145 12-Position Sensor Actuator Cable
The Phoenix Contact SAC-12P-5,0-35T/FS SH SCO is a robust sensor/actuator cable designed for reliable data transmission in industrial environments. It incorporates a 12-position M12 SPEEDCON connector, a 5-meter cable length, and a durable PUR/PVC jacket. The shielded design ensures resistance to electromagnetic interference, while the SPEEDCON system simplifies installation. This cable is ideal for applications requiring secure and efficient communication between sensors and actuators, such as automated machinery, industrial control systems, and process monitoring equipment.
Phoenix Contact 1430145 12-Position Sensor Actuator Cable Specifications:
- Packing unit: 1 pc
- GTIN: 4046356322416
- Weight per Piece (excluding packing): 460.000 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Length of cable: 5 m
- Stripping length of the free conductor end: 35 mm
- Ambient temperature (operation): -25 °C ... 85 °C
- Degree of protection: IP65
- Rated current at 40°C: 1.5 A
- Rated voltage: 30 V AC / 30 V DC
- Number of positions: 12
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Flammability rating according to UL 94: V0
- Contact material: CuZn
- Contact surface material: Ni/Au
- Contact carrier material: PA 6.6
- Material of grip body: TPU
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: Black PUR/PVC twisted pair
- Cable type (abbreviation): 35T
- Cable abbreviation: LSPYwC11Y
- UL AWM style: 20233 / 1061
- Conductor cross section: 12x 0.14 mm²
- AWG signal line: 26
- Conductor structure signal line: 18x 0.10 mm
- Core diameter including insulation: 1 mm ±0.05 mm
- Wire colors: White-brown, green-yellow, gray-pink, blue-red, black-violet
- Overall twist: Six pairs around the filler to the core
- Shielding: Tinned copper braided shield
- Optical shield covering: 85 %
- External sheath, color: black RAL 9005
- External cable diameter D: 8.5 mm ±0.2 mm
- Minimum bending radius, fixed installation: 5 x D
- Minimum bending radius, flexible installation: 10 x D
- Cable weight: 87 kg/km
- Outer sheath, material: PUR
- Material, inner sheath: PVC
- Material conductor insulation: PVC
- Conductor material: Tin-plated Cu litz wires
- Insulation resistance (cable): ≥ 10 MΩ*km
- Conductor resistance (cable): ≤ 142 Ω/km
- Nominal voltage (cable): 42 V AC
- Test voltage (cable): 1500 V AC
