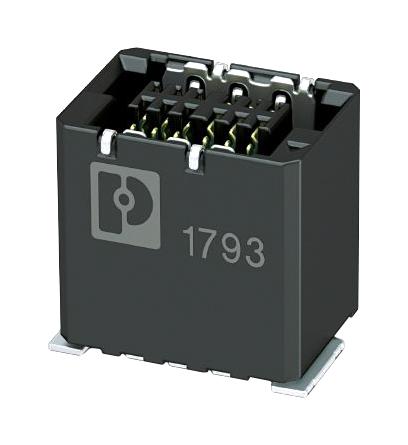

Phoenix Contact FP0820FVSH785 FINEPITCH PCB Connector
The FINEPITCH series offers high-density, reliable board-to-board connectors with both shielded and unshielded options for signal and data transmission. Designed for flexible PCB orientation, these connectors support pitches of 0.8 mm and 1.27 mm, catering to various stack heights from 6 to 12 mm, and feature robust, vibration-proof, hermaphroditic double contacts. Their excellent EMC properties, high data transmission speeds up to 16 Gbps, and suitability for automated processing make them ideal for industrial, automation, and high-speed data applications, ensuring high performance and durability.
Phoenix Contact FP0820FVSH785 FINEPITCH PCB Connector Specifications:
- Pitch: 0.8 mm and 1.27 mm
- Number of positions: 12, 16, 20, 26, 32, 40, 50, 68, 80
- Nominal current: 1.4 A at 20°C
- Contact resistance: Max. 25 mΩ
- Insulation resistance: Min. 10 GΩ
- Test voltage: 500 VAC
- Air clearances and creepage distances: Min. 0.25 mm
- Temperature limits during operation: -55°C to +125°C
- Insertion and withdrawal force: Approx. 0.5 N (1.27 mm), <12 N (0.8 mm)
- Durability: 500 insertion cycles
- Data transmission speed: Up to 16 Gbps
- EMC properties: Shielded options available, excellent EMI shielding
- Materials: Cu alloy contacts, Ni, Au, Sn plating
- Standards: UL 1977, IEC 60512
Buy the Buy Phoenix Contact FINEPITCH Part Number FP0820FVSH785 Online
Purchase the Phoenix Contact FINEPITCH FP0820FVSH785 online to ensure a high-quality, durable connection solution. Support high-speed data transfer up to 16 Gbps with excellent EMC shielding, ideal for industrial, automation, and electronics applications. This connector offers versatile configurations with various stack heights and pitches of 0.8 mm and 1.27 mm, compatible with automated assembly processes. Order today for reliable, vibration-proof, and future-proof PCB connections that enhance your device design and manufacturing efficiency.
Get Phoenix Contact FP0820FVSH785 today—designed for high-speed data and robust PCB connections in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact FP0820FVSH785?
You can click on the BUY or RFQ button to purchase FP0820FVSH785 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FP0820FVSH785?
You can download the FP0820FVSH785 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FP0820FVSH785?
Phoenix Contact
