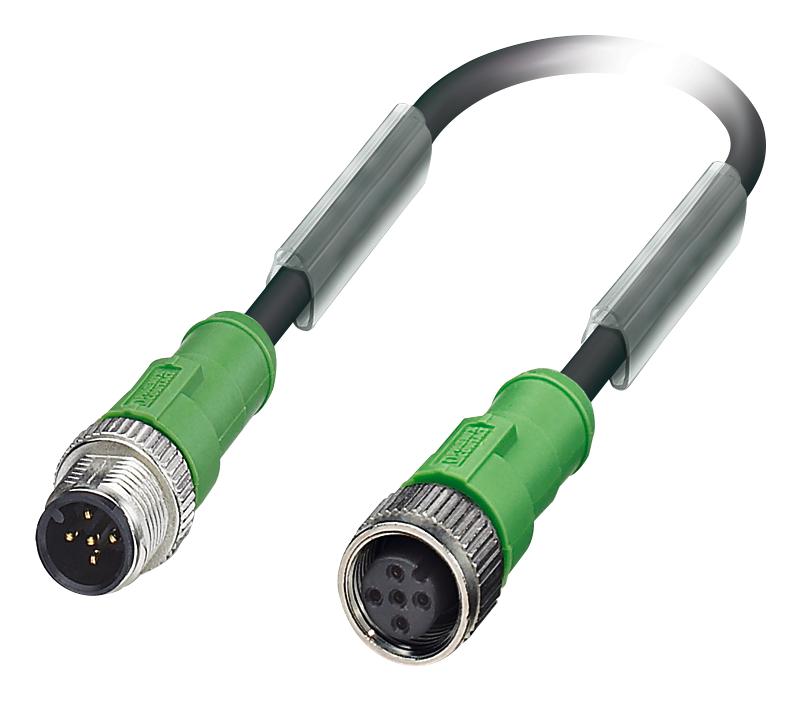

Phoenix Contact 1681606 Sensor Actuator Cable
The PHOENIX CONTACT 1681606 Sensor/Actuator cable provides a dependable connection solution for industrial automation applications. Its robust construction, including a PUR jacket and M12 connectors, ensures durability in harsh environments. The cable's halogen-free composition contributes to safety and environmental responsibility. Commonly used in factory automation, process control, and building automation systems, this cable facilitates reliable data transmission between sensors, actuators, and control systems.
Phoenix Contact 1681606 Sensor Actuator Cable Specifications:
- Packing unit: 1 STK
- GTIN: 4017918158118
- Weight per Piece (excluding packing): 70.700 g
- Custom tariff number: 85444290
- Country of origin: India
- Length of cable: 1.5 m
- Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)
- Degree of protection: IP65, IP67, IP68
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Number of positions: 5
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PUR halogen-free black
- Cable type (abbreviation): PUR
- Cable abbreviation: Li9Y11Y
- UL AWM style: 20549 / 10493 (80°C/300 V)
- Conductor cross section: 5x 0.34 mm² (Signal line)
- AWG signal line: 22
- Conductor structure signal line: 42x 0.10 mm
- Core diameter including insulation: 1.27 mm ±0.02 mm (Signal line)
- Thickness, insulation: ≥ 0.21 mm
- Wire colors: brown, white, blue, black, green-yellow
- Overall twist: 5 wires around filler to the core
- External sheath, color: black-gray RAL 7021
- Outer sheath thickness: approx. 0.7 mm
- External cable diameter D: 5 mm ±0.15 mm
- Smallest bending radius, fixed installation: 25 mm
- Smallest bending radius, movable installation: 50 mm
- Number of bending cycles: 4000000
- Cable weight: 35 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: PP
- Conductor material: Bare Cu litz wires
- Insulation resistance cable: ≥ 16 GΩ*km (at 20 °C)
- Conductor resistance: max. 58 Ω/km (at 20 °C)
- Nominal voltage, cable: 300 V
- Test voltage, cable: 3000 V
- Flame resistance: in accordance with DIN UL-Style 20549
- Halogen-free: in accordance with DIN VDE 0472 part 815
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Resistance to chemicals: Highly resistant to acids, alkaline solutions and solvents
- Resistance to microbes: hydrolysis and microbe resistant
- Resistance to salt water: Resistant to salt water
- UV resistance: partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Ambient temperature (operation) cable: -40 °C ... 80 °C (cable, fixed installation)
- Ambient temperature (operation) cable movable: -25 °C ... 80 °C (cable, flexible installation)
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
