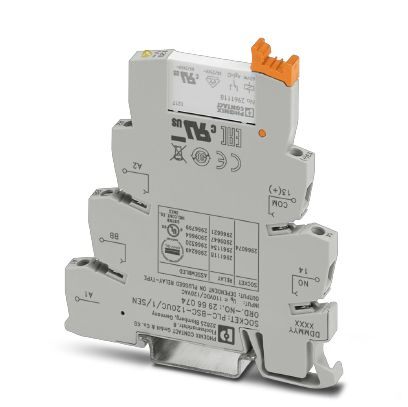

Phoenix Contact 2966249 PLC Relay Module
The PHOENIX CONTACT PLC-RSC-120UC/1/SEN relay module is a versatile solution for input functions in programmable logic controller (PLC) systems. It combines a PLC-BSC basic terminal block with a plug-in miniature relay, offering a compact and efficient design for DIN rail mounting. The module provides a single normally open (N/O) contact and operates on a 120 V AC/DC input voltage, making it suitable for a wide range of industrial applications. Its robust construction and reliable performance ensure consistent operation in demanding environments. The module's bridge rectifier provides protection, and the operating voltage display simplifies troubleshooting. It is designed for use in automation systems, machine control, and process control applications where reliable relay functionality is essential.
Phoenix Contact 2966249 PLC Relay Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 35.94 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Nominal input voltage UN: 120 V AC/DC
- Typical input current at UN: 3.5 mA
- Typical response time: 6 ms
- Typical release time: 15 ms
- Protective circuit: Bridge rectifier
- Operating voltage display: yes
- Power dissipation for nominal condition: 0.42 W
- Contact type: 1 N/O contact
- Contact material: AgSnO
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 12 V AC/DC
- Min. switching current: 10 mA
- Maximum inrush current: on request
- Limiting continuous current: 6 A
- Interrupting rating (ohmic load) max.: 1500 VA (for 250 V AC)
- Connection method (Coil side): Screw connection
- Stripping length (Coil side): 8 mm
- Screw thread (Coil side): M3
- Conductor cross section solid (Coil side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Coil side): 0.14 mm² ... 2.5 mm²
- AWG conductor cross section (Coil side): 26 ... 14
- Connection method (Contact side): Screw connection
- Stripping length (Contact side): 8 mm
- Screw thread (Contact side): M3
- Conductor cross section solid (Contact side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Contact side): 0.14 mm² ... 2.5 mm²
- AWG conductor cross section (Contact side): 26 ... 14
- Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
- Operating mode: 100% operating factor
- Mechanical service life: 2 x 10⁷ cycles
- Flammability rating according to UL 94: V0
- Standards/regulations: IEC 60255/DIN VDE 0435
- Pollution degree: 3
- Overvoltage category: III
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Utilization restriction: EMC: class A product, see manufacturer's declaration
