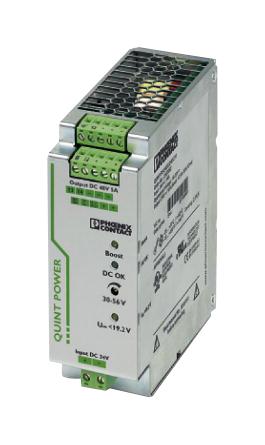

Phoenix Contact 2320128 Industrial DC/DC Converter
The QUINT DC/DC converter efficiently converts 24 V DC input to a regulated 48 V DC output at 5 A, ideal for creating independent and isolated power systems. Featuring rapid magnetic trip circuit breakers with SFB technology, it provides high system availability through preventive monitoring. The converter supports static power boost up to 125%, ensuring reliable startup of challenging loads, and maintains constant voltage even over long cable runs. It is mounted on a DIN rail, has IP20 protection, and is suitable for industrial automation and control applications.
Phoenix Contact 2320128 Industrial DC/DC Converter Specifications:
- Dimensions: Width 48 mm, Height 130 mm, Depth 125 mm
- Input Nominal Voltage: 24 V DC, Range: 18 V DC to 32 V DC
- Input Fuse: 25 A (internal)
- Protection: Transient surge protection, Varistor
- Output Nominal Voltage: 48 V DC, Range: 30 V DC to 56 V DC
- Output Current: 5 A (-25°C to 60°C), Power Boost: 6.254 A
- Efficiency: > 92.5 %
- Isolation Voltage: Input/Output 1.5 kV
- Protection Class: IP20
- Ambient Temperature: -25°C to 70°C, Derating over 60°C
- Connections: Pluggable screw terminals, M3 screw thread, AWG 24-12
- Standards: EN 61000 series EMC immunity, UL 508, EN 60950-1 safety
- Max. Capacitive Load: Unlimited, Ripple: <20 mVpp
Buy the Phoenix Contact Series QUINT DC/DC Converter: 2320128
Enhance your industrial control system with the Phoenix Contact QUINT DC/DC converter. This high-performance unit converts 24 V DC input into a stable 48 V DC output at 5 A, supporting reliable operation of challenging loads. Featuring advanced protective features like transient surge protection and preventive system monitoring, it ensures high availability and safety in your automation environment. Its DIN rail mounting, IP20 protection, and efficient power boost capabilities make it an ideal solution for modern manufacturing and machinery control systems. Purchase online now for dependable power management.
Get Phoenix Contact 2320128 today—built for precise regulation and long-lasting durability in industrial power applications.
Frequently Asked Questions
Where can I buy Phoenix Contact 2320128?
You can click on the BUY or RFQ button to purchase 2320128 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2320128?
You can download the 2320128 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2320128?
Phoenix Contact
