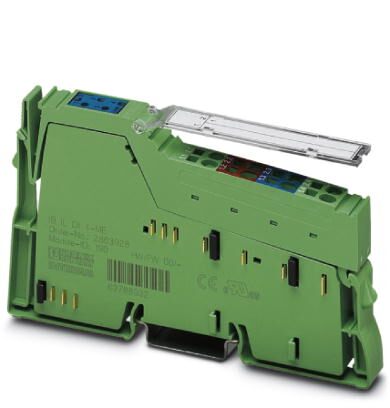

Phoenix Contact 2863928 Inline Digital Input Terminal
The PHOENIX CONTACT Inline ME terminal - IB IL 24 DI 4-ME is a versatile digital input terminal designed for integration into Inline stations. This terminal provides four digital inputs for acquiring signals from various sensors and devices. It operates on a 24 V DC power supply and utilizes a 3-wire connection method for reliable signal transmission. The terminal's robust design includes a degree of protection of IP20, ensuring its suitability for industrial environments. It supports process data operation with 4 bits and features diagnostic and status indicators for easy monitoring. The terminal is designed for use in automation systems, enabling efficient data acquisition and control.
Phoenix Contact 2863928 Inline Digital Input Terminal Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 4 pc
- GTIN: 4017918962678
- Weight per Piece (excluding packing): 68.800 g
- Custom tariff number: 85389091
- Country of origin: Germany
- Width: 12.2 mm
- Height: 119.8 mm
- Depth: 71.5 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 85 °C
- Permissible humidity (operation): 10 % ... 95 % (according to DIN EN 61131-2)
- Permissible humidity (storage/transport): 10 % ... 95 % (according to DIN EN 61131-2)
- Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level)
- Degree of protection: IP20
- Mounting type: DIN rail
- Color: green
- Net weight: 59 g
- Note on weight specifications: with connector
- Operating mode: Process data operation with 4 bits
- Designation (Inline local bus): Inline local bus
- No. of channels (Inline local bus): 2
- Connection method (Inline local bus): Inline data jumper
- Transmission speed (Inline local bus): 500 kbps
- Transmission physics (Inline local bus): Copper
- Supply voltage (Communications power (UL)): 7.5 V DC (via voltage jumper)
- Current consumption (Communications power (UL)): max. 40 mA
- Power consumption (Communications power (UL)): max. 0.3 W (at UL)
- Supply voltage (Segment circuit supply (US)): 24 V DC (via voltage jumper)
- Supply voltage range (Segment circuit supply (US)): 19.2 V DC ... 30 V DC (including all tolerances, including ripple)
- Current consumption (Segment circuit supply (US)): max. 1 A
- Input name (Digital inputs): Digital inputs
- Description of the input (Digital inputs): EN 61131-2 type 1
- Connection method (Digital inputs): Spring-cage connection
- Connection technology (Digital inputs): 3-wire
- Number of inputs (Digital inputs): 4
- Typical response time (Digital inputs): < 1 ms
- Nominal input voltage UIN (Digital inputs): 24 V DC
- Nominal input current at UIN (Digital inputs): min. 3 mA (at nominal voltage)
- Input voltage (Digital inputs): 24 V DC
- Input voltage range "0" signal (Digital inputs): -3 V DC ... 5 V
- Input voltage range "1" signal (Digital inputs): 15 V DC ... 30 V DC
- Input voltage range (Digital inputs): -30 V DC ... 30 V DC
- Test section (Electrical isolation): 7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min.
- Test section 2 (Electrical isolation): 7.5 V supply (bus logics) / functional earth ground 500 V AC 50 Hz 1 min.
- Test section 3 (Electrical isolation): 24 V supply (I/O) / functional earth ground 500 V AC 50 Hz 1 min.
