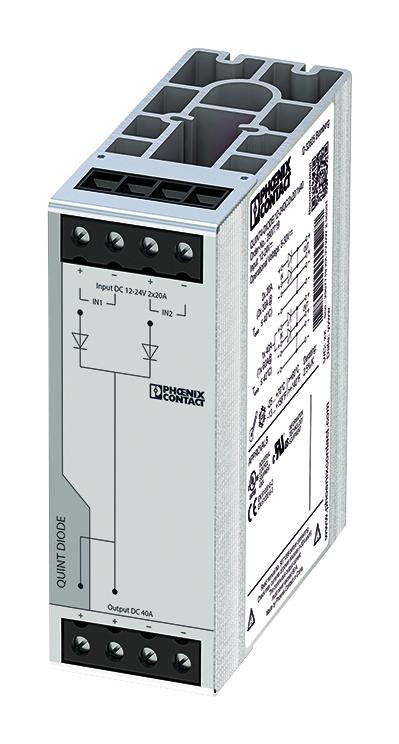

Phoenix Contact 2907719 Diode Module
This DIN rail diode module is designed for reliable redundancy in power systems, compatible with 12-24 V DC input and outputting up to 40 A. It features rugged construction with > 97% efficiency, making it suitable for industrial environments. The module provides safe decoupling of power supplies with integrated monitoring, ensuring system availability. Its compact size (50 mm width, 130 mm height, 125 mm depth) supports flexible installation on DIN rails. It adheres to international safety, EMC, and ATEX standards, ensuring safety and durability in demanding applications.
Phoenix Contact 2907719 Diode Module Specifications:
- Dimensions: Width 50 mm, Height 130 mm, Depth 125 mm
- Input Voltage Range: 10 VDC...30 VDC, Nominal 12VDC...24VDC
- Input Current: 2x20 A (-25°C...60°C), Max 2x30 A (-25°C...40°C)
- Output Voltage: 12 VDC...24 VDC, Max Output Current: 40 A (Increasing power), 20 A (Redundancy)
- Efficiency: > 97 %
- Protection Class: 1P20
- Ambient Temperature: -40°C to 70°C (Derating begins at > 60°C), Storage -40°C to 85°C
- Relative Humidity: < 95% (non-condensing)
- Altitude: < 2000 m
- Mounting: Horizontal DIN rail NS 35, EN 60715
- Connections: Screw connection, flexible and solid wires 0.5 mm² to 16 mm², AWG 10-6
- Standards: EN 60950-1, IEC 60950-1, EN 50178, DIN VDE 0100-410, UL 508, UL 60950
- Vibration (operation): <15 Hz +2.5mm, 15-150 Hz 2.3g
- Shock: 30 g, 18 ms in all directions
- MTBF: 40 million hours
Buy the Phoenix Contact 2907719 – Reliable Diode Module for Industrial Applications
Enhance your industrial power systems with this high-efficiency diode module designed for reliable redundancy. Suitable for 12-24 V DC input, it delivers up to 40 A output current with robust construction. Easy to install on DIN rails, the module provides safe decoupling and permanent redundancy monitoring. Its rugged design ensures operation in harsh environments, adhering to international safety and EMC standards. Perfect for maintaining system availability and operational continuity in demanding industrial applications.
Buy Phoenix Contact 2907719 now and experience unmatched reliability and performance in your power redundancy systems.
