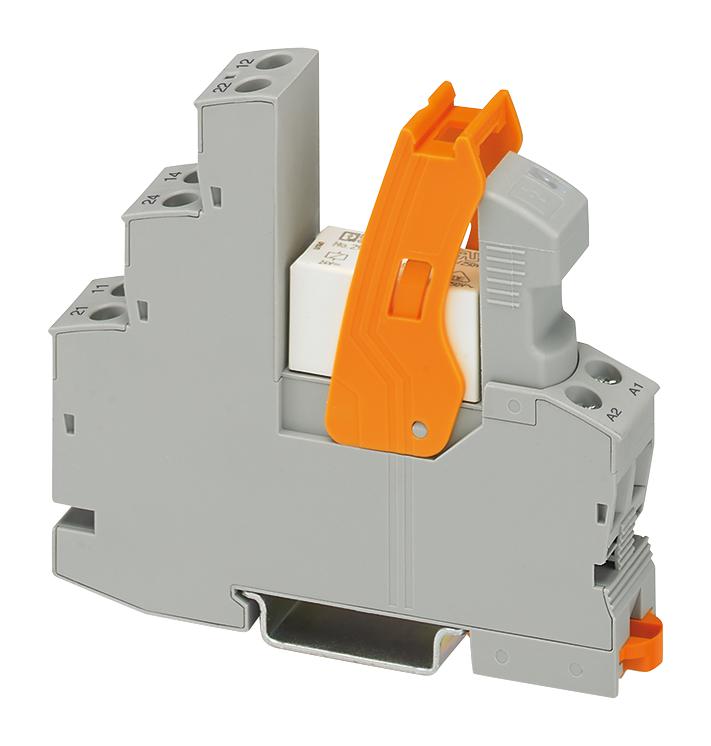

Phoenix Contact 2909885 Industrial Relay Module
Pre-assembled relay module featuring screw connection, consisting of relay base, power contact relay, plug-in display/interference suppression module, and retaining bracket. It has one N/O contact, handles inrush current up to 130 A peak and 80 A (20 ms), operates at 24 V DC input voltage, with dimensions of 16 mm width, 93 mm height, and 75 mm depth. Suitable for industrial automation, with high switching capacity up to 250 V AC/DC and mechanical longevity of 30,000 cycles, compliant with international standards.
Phoenix Contact 2909885 Industrial Relay Module Specifications:
- Dimensions: Width 16mm, Height 93mm, Depth 75mm
- Input voltage: 24V DC, typical input current 18 mA
- Contact type: 1 N/O contact, material: AgSnO
- Switching voltage: 12 V to 250 V AC/DC, maximum 250 V
- Maximum switching current: 6A, inrush current up to 130 A (peak, capacitive load)
- Response time: 8 ms; Release time: 10 ms
- Operating temperature: -40°C to 70°C; Storage: -40°C to 85°C
- Protection class: IP20; Standards: IEC 60664, EN 50178
- Safety: Reinforced insulation, surge voltage 6kV
- Mechanical lifespan: 30,000 cycles
Buy the Buy Phoenix Contact Relay Module Part Number 2909885 Online
Order the Phoenix Contact relay module now to benefit from reliable switching, robust design, and easy installation in industrial automation setups. This versatile device features a screw connection, wide voltage range, and high inrush current handling capability, making it ideal for controlling heavy loads and ensuring operational safety. With a compact size of 16 mm width and deep technical features, this relay module offers excellent performance for demanding applications. Shop online today for fast delivery and technical support.
Buy Phoenix Contact 2909885 relay module now and enjoy high reliability, rapid response times, and optimal switching performance for industrial automation
Frequently Asked Questions
Where can I buy Phoenix Contact 2909885?
You can click on the BUY or RFQ button to purchase 2909885 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2909885?
You can download the 2909885 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2909885?
Phoenix Contact
