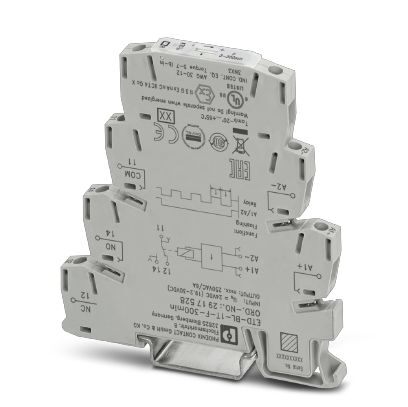

Phoenix Contact 2917528 Timer Relay
This timer relay with flasher function initiates with a pulse, offering precise control of time sequences from 0.1 seconds up to 10 seconds. Its compact design measures 6.2 mm in width, making it ideal for space-constrained applications. The relay features an adjustable thumbwheel for setting times accurately, protected against accidental changes with a recessed design. Suitable for controlling various automation processes, it supports different connection types, including screw, spring-cage, and push-in terminals, ensuring flexible and secure installation in industrial environments.
Phoenix Contact 2917528 Timer Relay Specifications:
- Dimensions: 6.2 mm width
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -25 °C ... 80 °C
- Permissible humidity: 15% ... 85%
- Input voltage range: 24 V DC (19.2 V DC ... 30 V DC)
- Time setting range: 0.1 s - 10 s (adjustable via thumbwheel)
- Maximum switching time: 300 min
- Contact type: 1 floating PDT
- Interrupting rating: max. 1125 VA (4.5 A/250 V AC)
- Output fuse: 6.3 A (fast-blow)
- Protection against accidental setting changes
- Connection options: screw, spring-cage, push-in terminals
- Certifications: UL Listed, cUL Listed, GL, GL-SW, EAC
Buy the Buy Phoenix Contact Timer Relay Part Number 2917528 Online
Experience reliable timing control with this compact relay featuring adjustable pulse durations from 0.1 to 10 seconds. Its space-saving 6.2 mm design is suitable for tight industrial control panels. Equipped with a sturdy screw connection and protected thumbwheel for easy, accurate adjustments, this relay supports various connection types like screw, spring-cage, and push-in terminals. It features UL and cUL certification, making it a trusted choice for automation applications needing precise, durable timer functions in a variety of industrial environments.
Get Phoenix Contact 2917528 today—built for precise timing control and long-lasting durability in automation systems.
