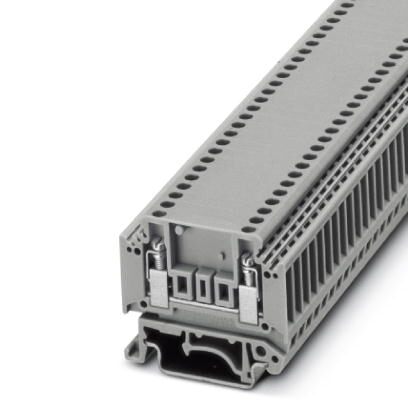

Phoenix Contact 3100017 Feed-through Terminal Block
The PHOENIX CONTACT MTKD 3100017 feed-through terminal block provides a reliable connection solution for a variety of industrial applications. Its screw connection mechanism ensures a secure and durable connection, while the compact design optimizes space utilization in control cabinets. With a high current carrying capacity of up to 16A and a nominal voltage of 400V, this terminal block is suitable for power distribution and signal transmission in diverse electrical systems. It is compatible with NS 35/7.5, NS 35/15, and NS 32 mounting rails, offering flexibility in installation. The terminal block supports conductor cross-sections ranging from 0.2 mm² to 4 mm² and AWG 24 to 12, ensuring compatibility with a wide range of wiring configurations.
Phoenix Contact 3100017 Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 16 A
- Maximum load current: 16 A (with 4 mm² conductor cross section)
- Nominal voltage UN: 400 V
- Open side panel: Yes
- Number of positions: 1
- Width: 5.2 mm
- Length: 46.2 mm
- Height NS 35/7,5: 39.9 mm
- Height NS 35/15: 47.4 mm
- Height NS 32: 44.9 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 1.5 mm²
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 1.5 mm²
- Cross section with insertion bridge, solid max.: 4 mm²
- Cross section with insertion bridge, stranded max.: 2.5 mm²
- Connection method: Screw connection
- Stripping length: 7 mm
- Internal cylindrical gage: A3
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
- eCl@ss 4.0: 27141117
- eCl@ss 4.1: 27141117
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141126
- ETIM 2.0: EC000902
- ETIM 3.0: EC000902
- ETIM 4.0: EC000902
- ETIM 5.0: EC000902
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
