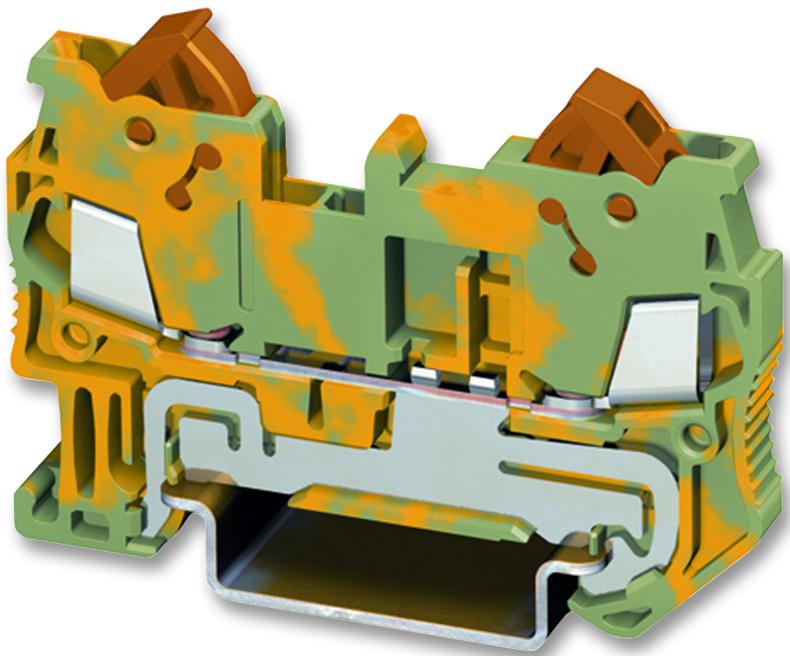

Phoenix Contact 3205035 Ground Terminal Block
The Phoenix Terminal Block Ground from the QTC series offers a professional-grade electrical connection with a 1.5 mm² pitch. Designed for reliable grounding applications, it features corrosion-proof terminal points, UL 94V-0 flammability rated insulation, and easy snap-on mounting onto DIN rails. Compatible with solid and stranded wires ranging from 0.5 to 1.5 mm² (AWG 24-16), this terminal block ensures low contact resistance and high durability. It meets IEC 60 947-7-2 standards and is suitable for demanding industrial automation and electrical distribution systems.
Phoenix Contact 3205035 Ground Terminal Block Specifications:
- Connection data: 0.25-1.5 mm² solid and stranded wires (AWG 24-16)
- Material: Polyamide (PA) with UL 94V-0 flammability rating
- Dimensions: Width 5.2 mm, length 94.0 mm, end cover width 2.2 mm, height 49.9 mm
- Rated surge voltage: 6 kV, Contamination Class: 3
- Maximum load current: 17.5 A
- Applicable for mounting on LS green-yellow terminal width: 5.2 mm
- Features: corrosion-proof terminal points, easy snap-on DIN rail mounting, dual jumper channels
- Compliance: IEC 60 947-7-2, UL, CSA, CUL approved
- Wire ranges: 0.5-1.0 mm² (halogen-free options available), flexible stranded wires
- Rated voltage: 800 V, Inflammability class UL 94V-0
- Compatible with additional accessories: end covers, plugs, bridges, test adapters, marking strips
Buy the Buy Phoenix Ground Terminal Block Part Number 3205035 Online
Enhance your electrical setup with the Phoenix Ground Terminal Block from the QTC series. Designed for durability and efficiency, it offers easy DIN rail installation, corrosion-proof terminal points, and supports wire sizes from 0.5 to 1.5 mm². Compliant with IEC standards, UL, and CSA certifications, this terminal block ensures safe, reliable grounding in industrial automation and distribution systems. Order online today for quick delivery and trusted quality.
Buy Phoenix Ground Terminal Block 3205035 now and experience unmatched reliability and high-quality grounding solutions for industrial applications.
Frequently Asked Questions
Where can I buy Phoenix Contact 3205035?
You can click on the BUY or RFQ button to purchase 3205035 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3205035?
You can download the 3205035 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3205035?
Phoenix Contact
