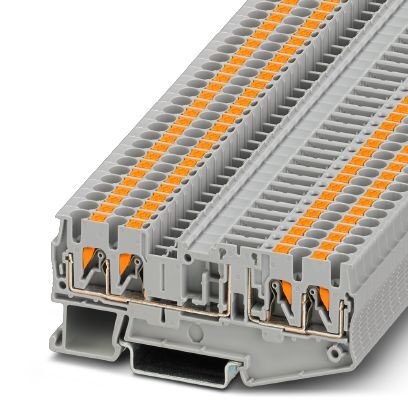

Phoenix Contact 3210208 Disconnect Terminal Block
The PHOENIX CONTACT PT 2,5-QUATTRO-TG disconnect terminal block is a versatile solution for connecting multiple conductors in a compact space. Its push-in connection simplifies wiring, eliminating the need for tools and enabling quick and efficient installations. Designed for use in various industrial applications, this terminal block provides reliable connections and convenient testing capabilities. It is suitable for applications requiring a robust and easy-to-use terminal block solution, contributing to efficient and safe electrical systems.
Phoenix Contact 3210208 Disconnect Terminal Block Specifications:
- Nominal Voltage: 400 V
- Nominal Current: 20 A
- Connection Method: Push-in connection
- Cross Section: 0.14 mm² - 4 mm²
- AWG: 26 - 12
- Length: 84 mm
- Width: 5.2 mm
- Color: gray
- Mounting: NS 35/7,5, NS 35/15
- Number of Levels: 1
- Number of Connections: 4
- Potentials: 1
- Nominal Cross Section: 2.5 mm²
- Insulating Material: PA
- Flammability Rating: V0
- Rated Surge Voltage: 6 kV
- Degree of Pollution: 3
- Overvoltage Category: III
- Insulating Material Group: I
- Maximum Power Dissipation: 0.77 W
- Maximum Load Current: 20 A
- Open Side Panel: Yes
- Shock Protection Test: DIN EN 50274
- Finger Protection: guaranteed
- Surge Voltage Test Setpoint: 7.3 kV
- Power Frequency Withstand Voltage Setpoint: 1.89 kV
- Bending Test Rotation Speed: 10 rpm
- Bending Test Turns: 135
- Tensile Test Tractive Force Setpoint (0.14 mm²): 10 N
- Tensile Test Tractive Force Setpoint (2.5 mm²): 50 N
- Tensile Test Tractive Force Setpoint (4 mm²): 60 N
- Tight Fit on Carrier: NS 35
- Short-Time Current (1.5 mm²): 0.18 kA
- Short-Time Current (2.5 mm²): 0.3 kA
- Fire Protection Rail Vehicles: HL 1 - HL 3
- Smoke Gas Toxicity: passed
- Calorimetric Heat Release: 27,5 MJ/kg
- Relative Insulation Material Temperature Index: 130 °C
- Temperature Index of Insulation Material: 125 °C
