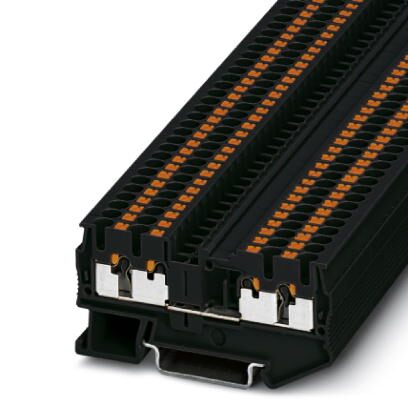

Phoenix Contact 3214424 Feed-Through Terminal Block
The Phoenix Contact feed-through terminal block is designed for quick, tool-free wiring with push-in connection, suitable for cross sections from 0.14 mm² to 4 mm². Its compact, front-connected design enables efficient wiring in confined spaces, ideal for industrial automation, control panels, and machine building. Compliant with fire safety standards like UL 94V-0 and DIN EN 45545-2, it supports various working environments, including railway and process industries. Rated for 800 V and 24 A, with high insulation and flame retardant features, it ensures reliable electrical connectivity and safety.
Phoenix Contact 3214424 Feed-Through Terminal Block Specifications:
- Nominal voltage: 800 V
- Nominal current: 24 A
- Cross section: 0.14 mm² - 4 mm²
- Connection method: Push-in
- Width: 5.2 mm
- Height: 35.3 mm
- Material: PA, UL 94V-0 rated
- Flammability rating: UL 94V-0
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material temperature index: 130°C
- Rated surge voltage: 8 kV
- Conductor AWG: 26 - 12
- Dimensions: Length 72 mm, Width 5.2 mm, Height 35.3 mm
- Fire protection standards: DIN EN 45545-2 R22-R26 HL1-HL3
- Ingress protection: Tested for fire safety, flame retardant
- Standards and certifications: UL Recognized, CSA, EAC Ex, IECEx, ATEX
Buy the Phoenix 3214424 – Reliable Terminal Block for Industrial Applications
Order the Phoenix Contact feed-through terminal block online today to ensure high-quality electrical connections in your industrial automation systems. This compact, easy-to-install terminal block features push-in connection technology, rated for 800 V and 24 A. Its flame-retardant, UL 94V-0 rated material guarantees safety and compliance with fire standards like DIN EN 45545-2. Ideal for confined spaces, it offers reliable, maintenance-free connections, supporting various industries including railway, plant engineering, and machine building. Enhance safety and efficiency in your wiring solutions by purchasing online now.
Buy Phoenix Contact 3214424 now and experience unmatched reliability and performance in your control systems and industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 3214424?
You can click on the BUY or RFQ button to purchase 3214424 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3214424?
You can download the 3214424 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3214424?
Phoenix Contact
