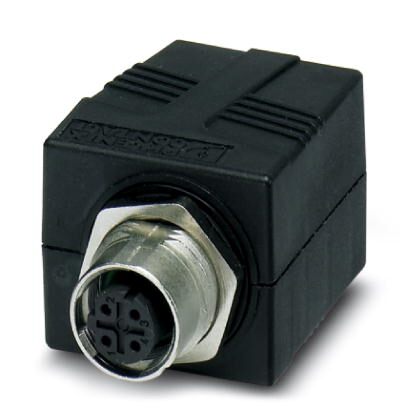

Phoenix Contact CUCBHM12D1PBKSR4BE M12 D-Coded RJ45 Connector
The PHOENIX CONTACT CUC-BH-M12D1PBK-S/R4BE is a compact and reliable M12 connector ideal for connecting Ethernet devices in industrial control cabinets. Its D-coded design ensures compatibility with RJ45 sockets, while the robust PA housing and copper alloy contacts provide durability and excellent signal transmission. The IP65/IP67 rating protects against dust and moisture, making it suitable for harsh environments. This connector supports data transmission speeds up to 100 Mbps and is commonly used in automation, networking, and power supply applications.
Phoenix Contact CUCBHM12D1PBKSR4BE M12 D-Coded RJ45 Connector Specifications:
- Number of positions: 4
- Shielded: yes
- Insertion/withdrawal cycles: ≥ 100
- Cable outlet: straight
- Color: black
- Mounting type: Rear mounting
- Degree of protection: IP65/IP67
- Ambient temperature (operation): -25 °C ... 85 °C
- Flammability rating according to UL 94: V0
- Housing material: PA
- Contact material: Copper alloy
- Nominal voltage UN: 48 V
- Nominal current IN: 0.5 A
- Transmission characteristics (category): CAT5 (IEC 11801:2002)
- GRP transmission properties: Ethernet CAT5 (IEC 11801:2002)
- Transmission speed: 100 Mbps
- Rated current: 1.75 A
- Rated voltage (III/3): 72 V (DC)
- Packing unit: 1 pc
- GTIN: 4055626166759
- Weight per Piece (excluding packing): 40.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- UL Listed: E335024-20140306
- cUL Listed: E335024-20140306
- EAC: B.01742
- cULus Listed: N/A
- China RoHS: Environmentally Friendly Use Period = 50
Buy the CUC-BH-M12D1PBK-S/R4BE PHOENIX CONTACT M12 D-Coded RJ45 Connector | myMectronic
Secure your industrial network with the genuine PHOENIX CONTACT CUC-BH-M12D1PBK-S/R4BE connector – buy now for reliable performance and peace of mind.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact CUCBHM12D1PBKSR4BE?
You can click on the BUY or RFQ button to purchase CUCBHM12D1PBKSR4BE from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part CUCBHM12D1PBKSR4BE?
You can download the CUCBHM12D1PBKSR4BE datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of CUCBHM12D1PBKSR4BE?
Phoenix Contact
