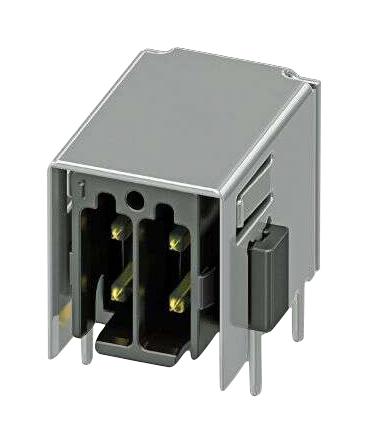

Phoenix Contact DMC052G1SH254P20THR24 PCB Header Connector
This feed-through header features gold-plated contacts for reliable long-term transfer quality, designed for SMT integration with high contact density, and supplied in tape-on-reel packaging for automated mounting. Made from Cu alloy with a black LcP housing, it supports a nominal current of 5 A, rated voltage of 160 V, and has 2 positions with a 2.54 mm pitch. Its compact dimensions include a length of 11.54 mm, width of 9.66 mm, and height of 10.29 mm, making it suitable for industrial PCB assemblies requiring durable and compliant connectors.
Phoenix Contact DMC052G1SH254P20THR24 PCB Header Connector Specifications:
- Nominal current: 5 A
- Rated voltage: 160 V
- Number of positions: 2
- Pitch: 2.54 mm
- Housing color: black (9005)
- Housing material: LcP
- Contact surface: gold-plated
- Contact material: Cu alloy
- Contact layer: gold (0.25 μm), nickel (2-4 μm)
- Solder pin: 2 mm
- Dimensions: length 11.54 mm, width 9.66 mm, height 10.29 mm
- Operational temperature: -30°C to 70°C (storage/transport), -5°C to 80°C (assembly), -40°C to 80°C (installation)
- Protection degree: IP20
- Process: reflow/wave soldering, IEC 61760-1:2006-04
- Mechanical durability: 100 insertion/withdrawal cycles
- Approvals: EAC, cULus recognized
- Packaging: tape-on-reel, 300 pieces
Buy the Phoenix Contact DMC052G1– Reliable PCB Header for Industrial Applications
Enhance your industrial electronic projects with this reliable PCB header connector, featuring gold-plated contacts for long-term stability, high contact density, and easy automated mounting. Built with Cu alloy and housed in a robust LcP black casing, it withstands demanding environments with a temperature range of -30°C to 70°C during storage and up to 80°C during assembly. The compact 2.54 mm pitch and IP20 rating make it ideal for space-conscious, industrial PCB setups, ensuring reliable, long-lasting electrical connections.
Order your Phoenix Contact DMC052G1 terminal header today and ensure high-quality, durable connections for your industrial PCB assemblies.
Frequently Asked Questions
Where can I buy Phoenix Contact DMC052G1SH254P20THR24?
You can click on the BUY or RFQ button to purchase DMC052G1SH254P20THR24 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part DMC052G1SH254P20THR24?
You can download the DMC052G1SH254P20THR24 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of DMC052G1SH254P20THR24?
Phoenix Contact
