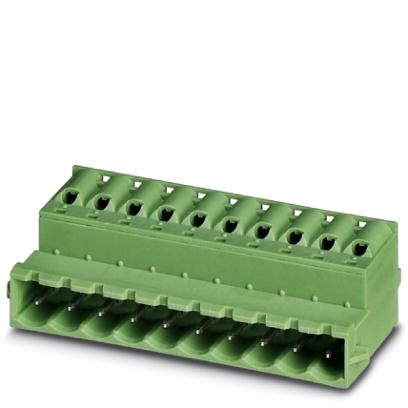

Phoenix Contact FKIC252ST508RN PCB Connector
The PHOENIX CONTACT FKIC 2 5/ 2-ST-5 08-RN is a plug component designed for printed circuit boards. It boasts a time-saving push-in spring connection, eliminating the need for tools. The connector's intuitive design, featuring a color-coded actuation lever, simplifies usage. Its inverted connector design with pin contacts ensures touch-proof device outputs or allows for free-hanging cable connections. The robust locking mechanism prevents accidental disconnection, and it's compatible with the MSTB 2´,5 range, making it a versatile solution for various industrial applications.
Phoenix Contact FKIC252ST508RN PCB Connector Specifications:
- Nominal current: 12 A
- Rated voltage (III/2): 320 V
- Number of positions: 2
- Pitch: 5.08 mm
- Connection method: Push-in spring connection
- Color: green
- Contact surface: Tin
- Insulating material group: I
- Rated surge voltage (III/3): 4 kV
- Rated surge voltage (III/2): 4 kV
- Rated surge voltage (II/2): 4 kV
- Rated voltage (III/3): 320 V
- Rated voltage (II/2): 630 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 2.5 mm²
- Maximum load current: 12 A
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Internal cylindrical gage: A2
- Stripping length: 10 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Minimum AWG according to UL/CUL: 26
- Maximum AWG according to UL/CUL: 12
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27260701
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440309
- ETIM 3.0: EC001121
- ETIM 4.0: EC002638
- ETIM 5.0: EC002638
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
Buy the FKIC 2 5/ 2-ST-5 08-RN PHOENIX CONTACT PCB Connector | myMectronic
Purchase the PHOENIX CONTACT FKIC 2 5/ 2-ST-5 08-RN PCB Connector securely online today.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact FKIC252ST508RN?
You can click on the BUY or RFQ button to purchase FKIC252ST508RN from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FKIC252ST508RN?
You can download the FKIC252ST508RN datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FKIC252ST508RN?
Phoenix Contact
