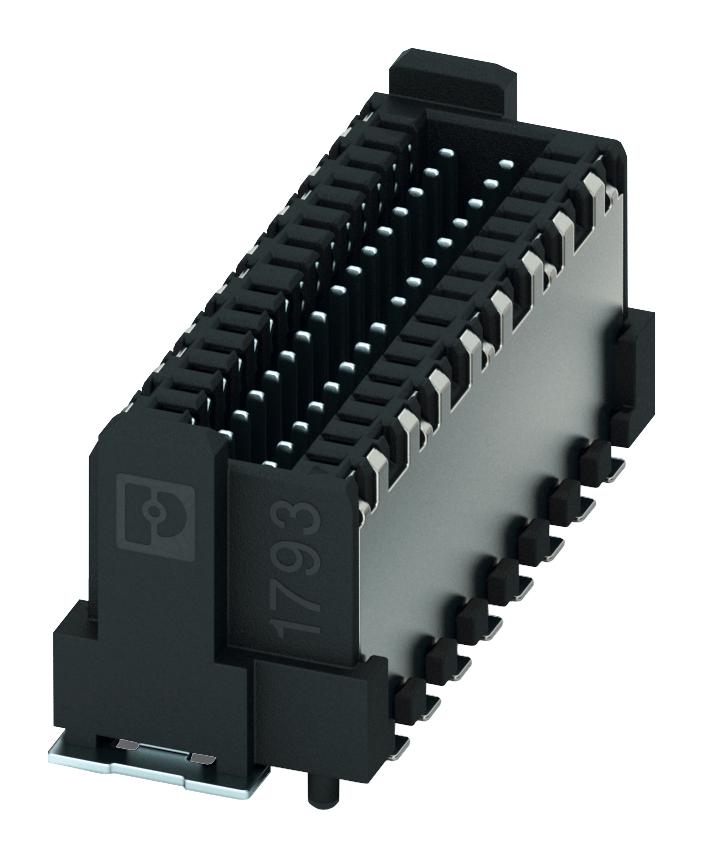

Phoenix Contact FP0832MVSH115 High-Speed PCB Connector
The FINEPITCH series offers highly flexible, reliable PCB connectors with 0.8 mm and 1.27 mm pitches, supporting high-speed data transmission up to 16 Gbps. The shielded and unshielded connectors are designed for robust signal and data transfer in industrial applications, featuring hermaphroditic double contacts, excellent EMC properties, and miltiple stack height options. These connectors are suitable for space-saving device designs, ensuring vibration-proof, process-reliable soldering, and reliable mating with polarization and orientation features for efficient automated assembly.
Phoenix Contact FP0832MVSH115 High-Speed PCB Connector Specifications:
- Pitch: 0.8 mm and 1.27 mm
- Number of positions: 12, 16, 20, 26, 32, 40, 50, 68, 80
- Nominal current: 1.4 A at 20°C (50-positions)
- Contact resistance: Max. 25 mΩ
- Insulation resistance: Min. 5 GΩ
- Test voltage: 500 VAC
- Air clearances and creepage: Min. 0.25 mm
- Temperature range: -55°C to +125°C
- Service life: 500 insertion cycles
- Data transmission: Up to 16 Gbps
- Shielded versions: Excellent EMC properties, with shields for interference protection
- Material: Cu alloy, Ni/Au surface of contact, Sn soldering area
- Standards: UL 1977, IEC 60512, UL 94 vo flammability
- Process: SMD soldering, tape-on-reel packaging, AOI compatible
Buy the Phoenix Contact FP0832MVSH115 – Reliable High-Speed PCB Connector for Industrial Applications
Enhance your device functionality with the Phoenix Contact FP0832MVSH115 high-speed PCB connector. Offering flexible configuration options with 0.8 mm pitch and proven reliability for vibration-proof connections, it supports data transmission rates up to 16 Gbps, ideal for industrial automation and communication systems. Its shielded design ensures excellent EMC performance, safeguarding sensitive signals against interference. Whether designing compact modules or robust control systems, this connector guarantees process-reliable soldering and seamless integration for efficient, space-saving layouts. Order online now to ensure fast delivery and reliable performance in your applications.
Buy Phoenix Contact FP0832MVSH115 now and experience unmatched reliability and high-speed data transfer suitable for industrial device designs.
Frequently Asked Questions
Where can I buy Phoenix Contact FP0832MVSH115?
You can click on the BUY or RFQ button to purchase FP0832MVSH115 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part FP0832MVSH115?
You can download the FP0832MVSH115 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of FP0832MVSH115?
Phoenix Contact
