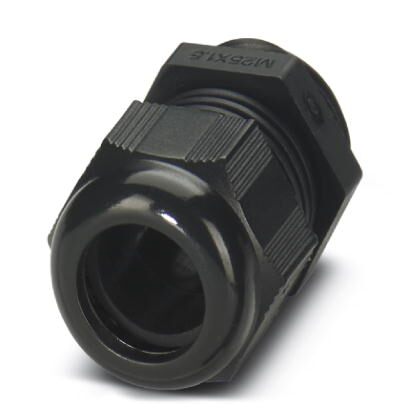

Phoenix Contact GINSM25M68NPNESBK M25 Cable Gland Connector
The PHOENIX CONTACT G-INS-M25-M68N-PNES-BK cable gland is designed for secure and reliable cable entry in industrial applications. Constructed from durable PA material, it offers excellent resistance to environmental factors and mechanical stress. The gland provides IP68 protection against dust and water ingress, making it suitable for harsh environments. It accommodates cable diameters ranging from 11 to 17mm and features a M25 x 1.5 connecting thread. This cable gland is ideal for applications requiring a robust and sealed cable connection, contributing to the overall safety and reliability of industrial equipment.
Phoenix Contact GINSM25M68NPNESBK M25 Cable Gland Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 5 pc
- GTIN: 4046356922678
- Weight per Piece (excluding packing): 16.000 g
- Custom tariff number: 39269097
- Country of origin: Turkey
- Length: 42 mm
- Wrench size, union nut: 29 mm
- Wrench size, support: 29 mm
- Hexagon angular dimension: 33.5 mm
- Length of the connecting thread: 8 mm
- Feed-through hole diameter: 25.1 mm ... 25.2 mm
- External cable diameter: 11 mm ... 17 mm
- Degree of protection (IP): IP68 (5 bar / 0.5 h), IP66
- Ambient temperature (operation): -40 °C ... 100 °C (static)
- No. of conductors: 1
- Cable gland material: PA
- Cable seal material: CR
- Flammability rating according to UL 94: V2
- Shielded: no
- Thread type on connection side: M25 x 1.5
- Torque: 5.5 Nm ± (1 Nm)
- Color: jet black RAL 9005
- Impact category: 4
- Execution of the strain relief: A
- Assembly instructions: Mount screw connection support in the housing using the correct torque; Insert cable; Tighten union nut using the correct torque
- Manufacturer: BIMED
- Manufacturer Designation: BM-EN-23
- Halogen-free: no
- Connection in acc. with standard: CSA
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e; No hazardous substances above threshold values
- eCl@ss 4.0: 27141200
- eCl@ss 4.1: 27141200
- eCl@ss 5.0: 27149100
- eCl@ss 5.1: 27149100
- eCl@ss 6.0: 27149100
- eCl@ss 7.0: 27149109
- eCl@ss 8.0: 27149109
- eCl@ss 9.0: 27144432
- ETIM 4.0: EC000441
- ETIM 5.0: EC000441
- ETIM 6.0: EC000441
- ETIM 7.0: EC000441
- UNSPSC 13.2: 39121311
- UNSPSC 18.0: 39121311
- UNSPSC 19.0: 39121311
- UNSPSC 20.0: 39121311
- UNSPSC 21.0: 39121311
