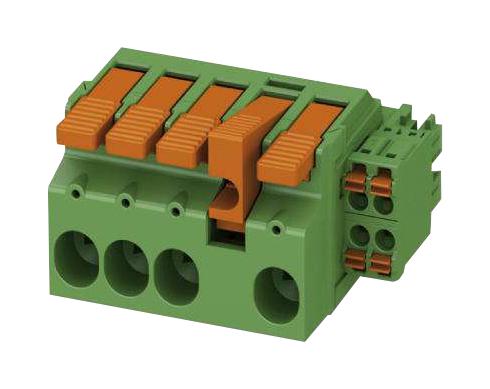

Phoenix Contact LPCH646STL4762 PCB Hybrid Connector
The PCB hybrid connector LPCH 6/ 4+6-STL4-7,62 offers a reliable and efficient connection solution with a push-in spring connection method, rated for 41A current at 1000V. Designed for use in power distribution and automation systems, it features a 7.62 mm pitch, modular design with multiple levels and potentials, and durable tin-plated Cu alloy contacts. Its compact size includes dimensions of 48mm length, 51.73mm width, and 35.65mm height. Suitable for solid or flexible conductors with stripping length of 18mm, it provides excellent electrical performance and environmental stability thanks to RoHS compliance and UL flame rating VO.
Phoenix Contact LPCH646STL4762 PCB Hybrid Connector Specifications:
- Pitch: 7.62 mm
- Number of positions: 10
- Connection method: Push-in spring connection
- Rated current: 41 A
- Rated voltage: 1000 V
- Surge voltage: 8 kV
- Conductor range solid: 0.75 mm² ... 10 mm²
- Conductor range flexible: 0.75 mm² ... 6 mm²
- Conductor AWG: 18 ... 8
- Dimensions: Length 48 mm, Width 51.73 mm, Height 35.65 mm
- Material: Copper alloy, Tin-plated
- Housing material: PAGF insulator, Flammability UL 94 VO
- Insulation monitoring: CTI 600, Dielectric strength: 800 V (III/3)
- Temperature range: -40°C to 100°C
- Environmental standards: RoHS compliant, UL listed
- Mechanical: 25 insertion cycles, withstanding 25 N insertion force, 20 N withdrawal force
- Approvals: cULus recognized, UL 600 V, 354 mm² wire compatibility
Buy the Buy Phoenix Contact PCB Hybrid Connector Part Number LPCH646STL4762 Online
Purchase the Phoenix Contact PCB hybrid connector LPCH 6/ 4+6-STL4-7,62 now and benefit from its high current capacity, secure push-in connection, and compact design. Perfect for power distribution and automation systems, this connector features durable tin-plated contacts, modular levels, and easy installation. With UL and RoHS compliance, it ensures safety, environmental responsibility, and long-term reliability. Get yours today online to enhance your electrical and automation projects with dependable, high-performance connectors that meet strict industry standards.
Order your Phoenix Contact LPCH 6/ 4+6-STL4-7,62 hybrid connector today and ensure reliable power and automation connections in your projects.
