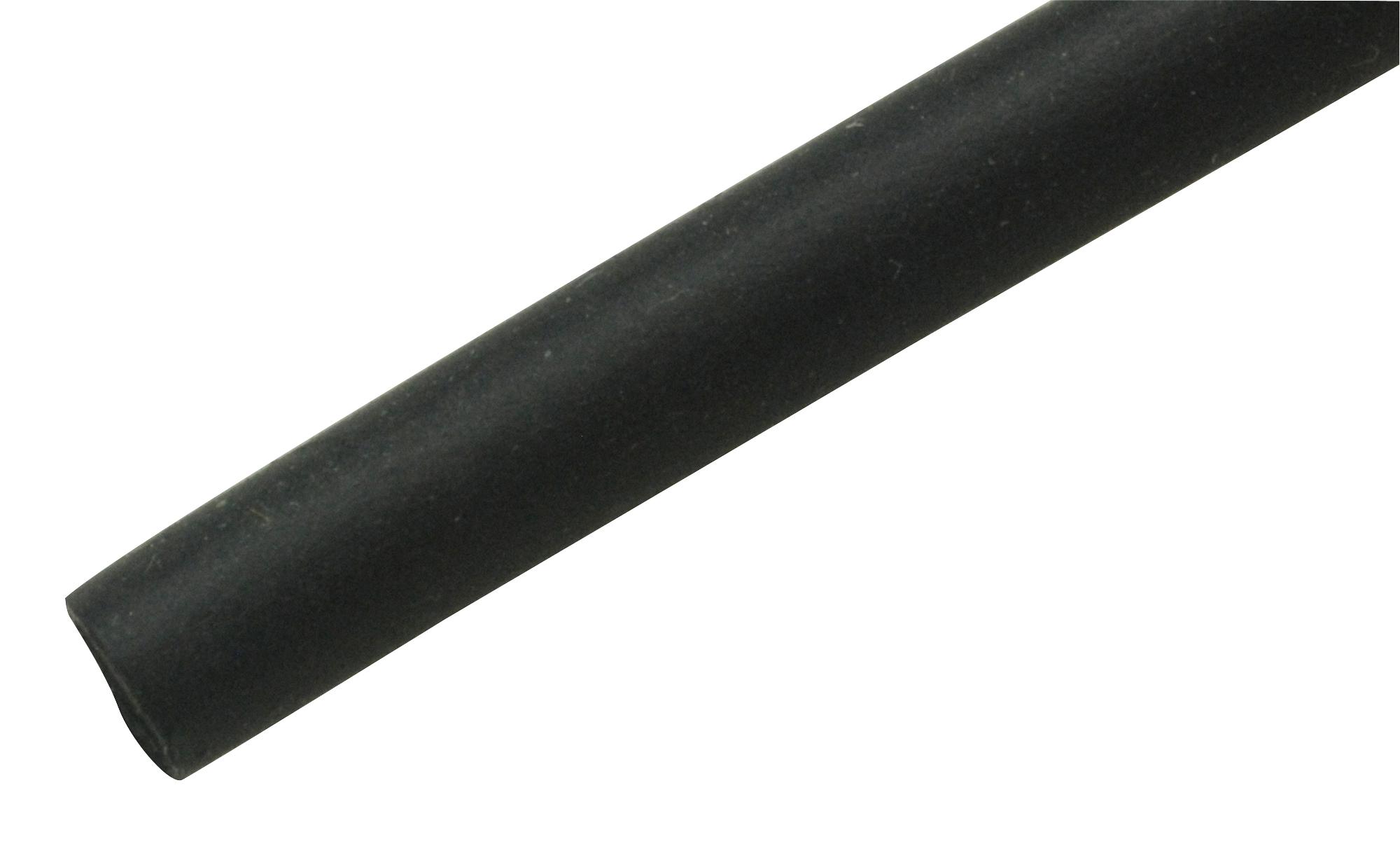

QUALTEK ELECTRONICS Q2F1801MS100FT Heat Shrink Tubing
Heat shrink thin wall tubing Q2-F offers excellent electrical insulation and environmental protection for industrial and military applications. Made from environmentally friendly and flame-retardant materials, it provides high resilience, withstanding operating temperatures from -55°C to +135°C. Suitable for bundling wires, color-coding, and protecting inline components, it features a shrink ratio of 2:4, full recovery at 100°C, and meets strict UL and RoHS standards. Available in multiple standard colors, it ensures safety, durability, and compliance in demanding electrical setups.
QUALTEK ELECTRONICS Q2F1801MS100FT Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Minimum Shrink Temperature: 70°C
- Full Recovery Temperature: 100°C
- Shrink Ratio: 2:4
- Material: No PBB's, PBBO's, PBBE’s, Free of Cadmium & Lead
- Approvals: UL File No. E236137, File No. 242540, VW-1, 600V, SAE-AMS-DTL-23053/5 Class 1 & 3, Sony-SS-00259
- Flammability: VW-1 Passed
- Dielectric Strength: >20kV/mm
- Voltage Withstand: AC2500V. 4 min. No Breakdown
- Tensile Strength: >14 MPa
- Ultimate Elongation: > 600%
- Longitudinal Shrinkage: 45%
- Eccentricity: <30%
- Volume Resistance: >10^10 Q·cm
Buy the Qualtek Q2F1801MS100FT – Reliable Heat Shrink for Industrial Applications
Purchase the heat shrink tubing online today and enjoy fast delivery and superior quality. Perfect for electrical insulation, wire bundling, and component protection in demanding industrial and military environments. Made from environmentally friendly, flame-retardant materials, it offers high resilience, excellent dielectric properties, and operates reliably within temperature ranges from -55°C to +135°C. Available in standard colors, with certifications ensuring safety and compliance, this tubing is essential for professional electrical installations requiring durability, safety, and ease of use.
Buy Qualtek Q2F1801MS100FT heat shrink tubing now and experience unmatched flexibility, high flame retardancy, and superior electrical protection for industrial needs.
Frequently Asked Questions
Where can I buy QUALTEK ELECTRONICS Q2F1801MS100FT?
You can click on the BUY or RFQ button to purchase Q2F1801MS100FT from an authorized QUALTEK ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part Q2F1801MS100FT?
You can download the Q2F1801MS100FT datasheet or visit the QUALTEK ELECTRONICS website for support.
Who is the manufacturer of Q2F1801MS100FT?
QUALTEK ELECTRONICS
