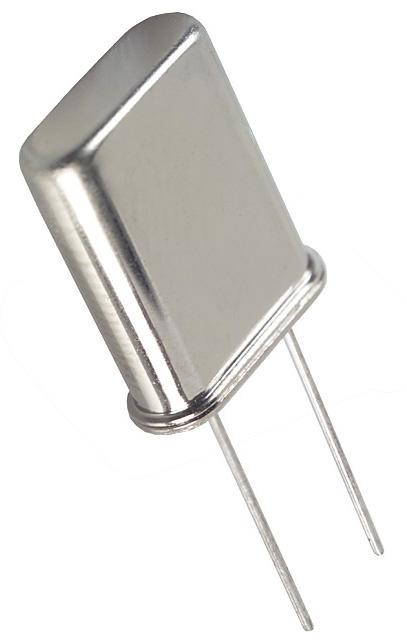

RALTRON A2400018 Crystal Oscillator
This component is used in clock and timing applications, ensuring accurate synchronization and timing signals within electronic circuits. It features a wide frequency range from 100.00 KHz to 300.00 MHz, with high frequency stability and tolerance. Suitable for industrial, embedded, and microprocessor projects, this crystal oscillator offers various package options including HC-49/U, HC-51/U, and UM-1, with features like extended temperature ranges (-40°C to +85°C) and robust shock resistance. Precise load capacitance options range from 10 to 32 pF, making it ideal for high-performance digital systems.
RALTRON A2400018 Crystal Oscillator Specifications:
- Frequency Range: 100.00 KHz to 300.00 MHz
- Package Options: HC-49/U, HC-51/U, UM-1
- Frequency Tolerance at 25°C: 430 PPM typical, +50 PPM max
- Temperature Stability: 450 PPM typical, #100 PPM max
- Operating Temperature Range: -20°C to +70°C, Extended -40°C to +85°C
- Storage Temperature: -55°C to +125°C
- Aging: +5 PPM per year max
- Load Capacitance: 10 to 32 pF
- Equivalent Series Resistance: varies by frequency and package
- Drive Level: 0.1 mW typical, 1 mW max
- Shock Resistance: 75 cm drop test in 3 axes or 1000 g for 0.5 ms
- Mounting: Tape and reel, three lead options
- Mechanical Dimensions: 19.49 mm max length, 15 mm max width, 8 mm max height
Buy the Rami Technologies A2400018 – Reliable Crystal Oscillator for Industrial Applications
Enhance your electronic design with this high-precision crystal oscillator, perfect for clock and timing applications. Offering wide frequency and temperature ranges, it ensures accurate synchronization in industrial, embedded, and microprocessor systems. With robust shock resistance, various package options like HC-49/U, HC-51/U, and UM-1, and load capacitance flexibility from 10 to 32 pF, this component guarantees high stability and durability. Ideal for professionals seeking reliable, high-performance timing solutions for demanding electronic environments.
Buy Rami Technologies A2400018 now and experience unmatched reliability and performance in your timing and clock circuits.
Frequently Asked Questions
Where can I buy RALTRON A2400018?
You can click on the BUY or RFQ button to purchase A2400018 from an authorized RALTRON distributor.
How do I troubleshoot issues or seek technical support for part A2400018?
You can download the A2400018 datasheet or visit the RALTRON website for support.
Who is the manufacturer of A2400018?
RALTRON
