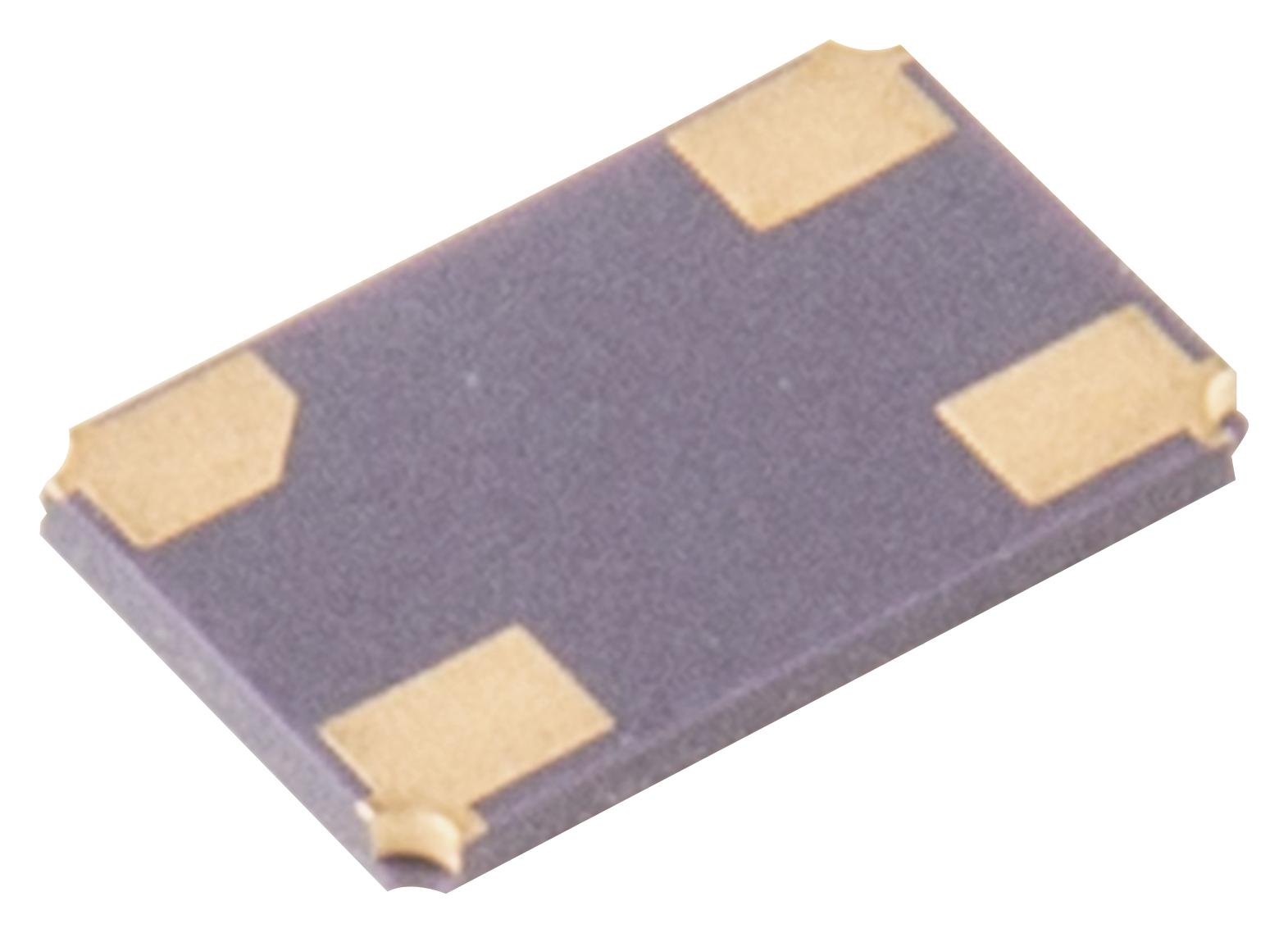

RALTRON H10S2500018F2020TR Surface Mount Crystal
This surface mount microprocessor crystal provides stable 25.000 MHz frequency and is ideal for clock and timing applications in electronic systems. It features a fundamental mode of oscillation, a maximum frequency tolerance of +20 ppm at 25°C, and maintains stability over varying temperatures from -10°C to +60°C. Designed with a load capacitance of 18 pF, it has an equivalent series resistance of 50 Ω maximum and a drive level of 100 pW. Packaging includes a 255 mm reel with 1000 pieces, suitable for automated SMT assembly. The crystal complies with RoHS standards and follows EIA-481 packaging guidelines, ensuring high reliability for industrial applications.
RALTRON H10S2500018F2020TR Surface Mount Crystal Specifications:
- Nominal Frequency: 25.000 MHz
- Mode of Oscillation: Fundamental
- Frequency Tolerance at 25°C: +20 ppm max
- Frequency Stability over Temperature: +20 ppm max
- Operating Temperature Range: -10°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Aging: +2 ppm per year max
- Load Capacitance: 18 pF
- Equivalent Series Resistance: 50 Ω max
- Shunt Capacitance: 7 pF max
- Drive Level: 100 pW max
- Packaging: 255 mm reel, 1000 pieces, according to EIA-481
- Reel Diameter: 255 mm
- Tape Width: 12 mm
- Tape Pitch: 8 mm
- Reel Quantity: 1000 pieces
- RoHS Compliant
- ESD Classification Level: Not specified
Buy the Raltron 25.000 MHz Surface Mount Crystal – Reliable Timing for Industrial Applications
Purchase the Raltron surface mount crystal with 25 MHz frequency today. Designed for electronic timing circuits, it offers high stability, RoHS compliance, and easy tape packaging for automated assembly. This crystal features a fundamental oscillation mode, precise +20 ppm tolerance at 25°C, and maintains stability over -10°C to +60°C. With a low ESR of 50 Ω, it is ideal for reliable clock generation in industrial electronics. Order online now for quick availability and trusted performance in your projects.
Get Raltron 25.000 MHz crystal today—built for precision and long-lasting durability in timing and clock applications.
Frequently Asked Questions
Where can I buy RALTRON H10S2500018F2020TR?
You can click on the BUY or RFQ button to purchase H10S2500018F2020TR from an authorized RALTRON distributor.
How do I troubleshoot issues or seek technical support for part H10S2500018F2020TR?
You can download the H10S2500018F2020TR datasheet or visit the RALTRON website for support.
Who is the manufacturer of H10S2500018F2020TR?
RALTRON
