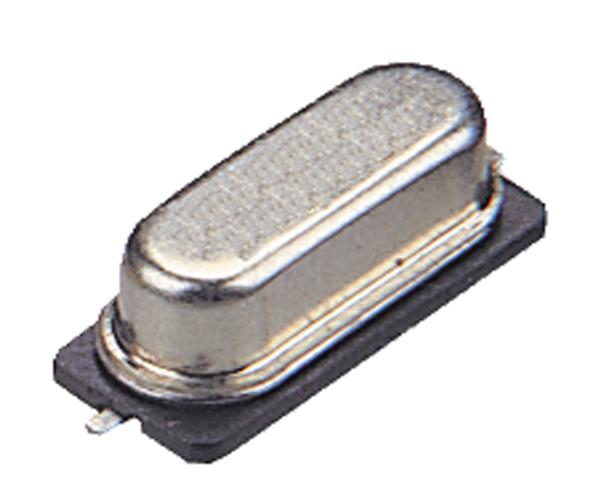

RALTRON AS2000018SMDT Microprocessor Crystal
The AS series SMD Crystal Unit operates within a frequency range of 3.2 to 70 MHz, with a maximum frequency tolerance of ±50 PPM at 25°C. It is ideal for microprocessor applications, providing a reliable clock signal generator for CPUs. The crystal unit features a low-profile surface-mount design and is available in extended temperature ranges, making it suitable for use in computers, industrial equipment, and clock & timing applications.
RALTRON AS2000018SMDT Microprocessor Crystal Specifications:
- Frequency Range: 3.20 MHz to 70.00 MHz
- Fundamental Mode: 3.20 MHz to 40.320 MHz
- Third Overtone Mode: 24.576 MHz to 70.00 MHz
- Frequency Tolerance: ±50 PPM at 25°C
- Temperature Range: -20°C to +70°C standard, -40°C to +85°C extended
- Storage Temperature: -55°C to +125°C
- Aging: +5 PPM per year maximum
- Load Capacitance: 10 pF to 32 pF or series
- Drive Level: 0.1 mW typical
- Reflow Conditions: 260°C for 10 seconds max
- Dimensions: Low profile surface-mount, height 3.2 mm typical, tape width 24 mm, reel diameter 330 mm
- Reel Quantity: 1000 pieces
Buy the Rami Technology AS2000018SMDT – Reliable Crystal for Industrial Applications
Enhance your electronic designs with the Rami Technology Microprocessor Crystal, operating from 3.2 to 70 MHz. Its reliable performance, low profile, extended temperature range, and precise frequency tolerance make it ideal for computers, industrial equipment, and timing applications. Available in tape and reel packaging, it ensures efficient manufacturing. Reflow soldering compatibility simplifies assembly, while specifications such as aging and load capacitance guarantee long-term stability and consistent operation—perfect for demanding industrial and clock synchronization applications.
Buy Rami Technology AS2000018SMDT now and experience unmatched reliability and performance in precise clock signal generation for industrial and computing needs.
Frequently Asked Questions
Where can I buy RALTRON AS2000018SMDT?
You can click on the BUY or RFQ button to purchase AS2000018SMDT from an authorized RALTRON distributor.
How do I troubleshoot issues or seek technical support for part AS2000018SMDT?
You can download the AS2000018SMDT datasheet or visit the RALTRON website for support.
Who is the manufacturer of AS2000018SMDT?
RALTRON
