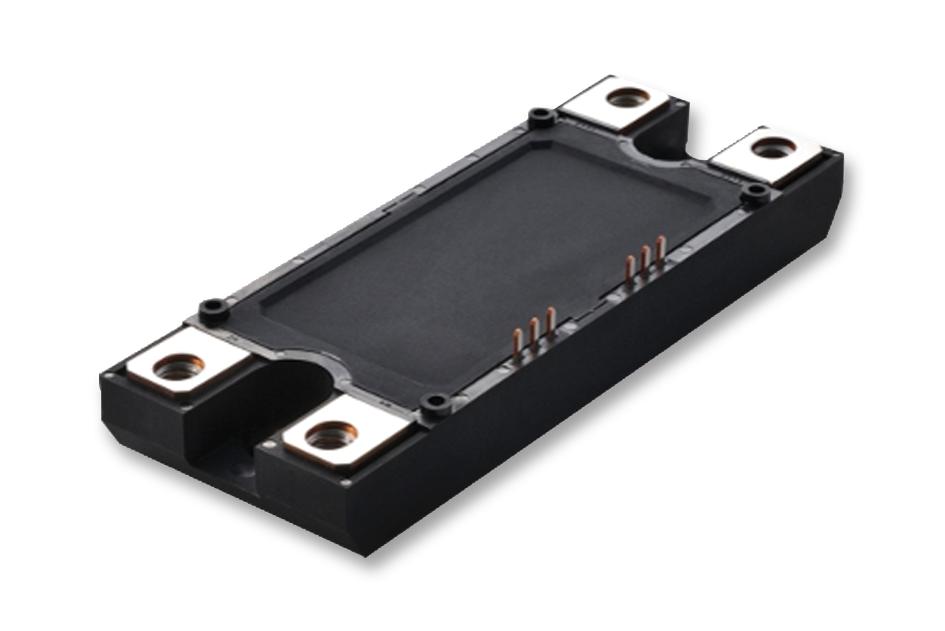

ROHM BSM180C12P3C202 Silicon Carbide Power Module
This high-performance silicon carbide power module integrates SiC-UMOSFET and SiC-SBD from ROHM, designed for motor drives, converters, photovoltaics, and wind power generation. Its features include low surge and switching loss, high-speed switching capability, and reduced temperature dependence. The module offers high voltage handling, with a drain-source voltage of up to 1200V, and a drain current of 180A continuous, 360A pulsed at 60°C. It has a compact design with easy mounting, making it ideal for demanding industrial power conversion applications.
ROHM BSM180C12P3C202 Silicon Carbide Power Module Specifications:
- Drain-source voltage: 1200V
- Repetitive reverse voltage: 1200V
- Gate-source voltage: ±22V
- Gate-source voltage (surge): -4 to 26V
- Drain current (DC): 180A at 60°C, pulsed 360A
- Drain power dissipation: 880W
- Maximum junction temperature: 175°C
- Storage temperature: -40°C to 125°C
- Isolation voltage: 2500Vrms
- Mounting torque: Main terminals M6 screw 45Nm, heat sink M5 screw 3.5Nm
- Case-to-heat sink thermal resistance: 0.085 K/W
- Creepage distance: Terminal to heat sink 12.5mm, terminal to terminal 20mm
- Switching times: turn-on/off in nanoseconds, low switching loss
- Physical dimensions: Refer to detailed datasheet with dimensions in mm
Buy the ROHM BSM180C12P3C202 – Reliable SiC Power Module for Industrial Applications
Purchase the ROHM BSM180C12P3C202 silicon carbide power module online today to leverage high-voltage, high-current capabilities, low switching loss, and robust thermal performance. Ideal for motor drives, photovoltaics, and wind power, this module ensures reliable operation under demanding conditions. Its compact design facilitates easy installation and maintenance, making it a perfect choice for industrial and renewable energy applications. Secure your supply and improve your system efficiency by ordering online now.
Order your ROHM Series BSM180C12P3C202 SiC power module today and enhance your industrial power conversion projects with superior efficiency and reliability.
Frequently Asked Questions
Where can I buy ROHM BSM180C12P3C202?
You can click on the BUY or RFQ button to purchase BSM180C12P3C202 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BSM180C12P3C202?
You can download the BSM180C12P3C202 datasheet or visit the ROHM website for support.
Who is the manufacturer of BSM180C12P3C202?
ROHM
