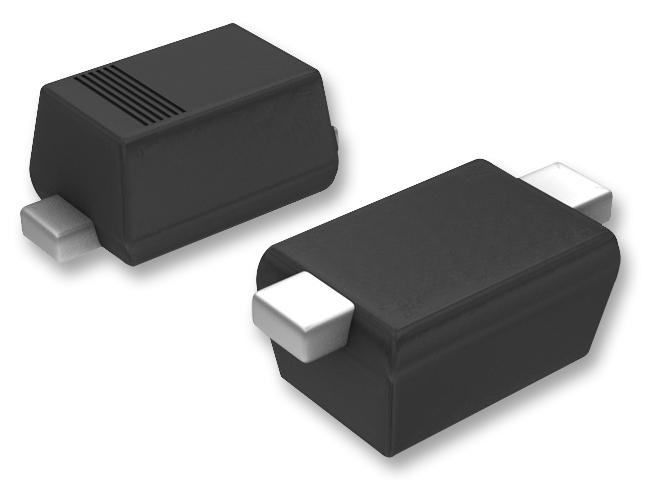

ROHM EDZVFHT2R30B Zener Diode
The EDZVFH30B is a high-reliability, AEC-Q101 qualified Zener diode with a voltage regulation capability of approximately 30.69V. Compact in size, it's suitable for use in precise voltage regulation and clamping applications in automotive and electronic circuits. This SOD523 package device features a maximum power dissipation of 150mW and junction temperature of 150°C. It offers stable Zener voltage characteristics over temperature ranges, with specific parameters including Zener impedance and dynamic impedance for reliable circuit performance. Ideal for compact design needs demanding efficiency and reliability.
ROHM EDZVFHT2R30B Zener Diode Specifications:
- Package Type: SOD523 (SC-79)
- Maximum Power Dissipation: 150mW
- Junction Temperature: 150°C
- Storage Temperature Range: -55°C to 150°C
- Zener Voltage Range: 29.19V to 30.69V
- Dynamic Impedance: Typical 0.5Ω at 20mA
- Reverse Current: Max 200μA at designated voltage
- Marking: EXZVFH30B
- Taping Reel Size: 180mm, Taping Width: 8mm
- Basic Ordering Units: 8000 pcs
- Temperature Coefficient: Approx. 0.12%/°C
- Reverse Voltage: Max approximately 35.0V at compliance current
- Forward Voltage (VR = 1mA): Approx. 1.0V
- Dimensions (average): L=0.75mm, W=0.07mm, D=0.80mm
- Operating Temperature Range: -55°C to 150°C
- Standards: RoHS Compliant
Buy the Buy ROHM EDZVFH30B Zener Diode Part Number EDZVFH30B Online
Purchase the ROHM EDZVFH30B Zener diode online today for reliable voltage regulation in automotive and electronic applications. Compact and highly dependable, this SOD523 package device supports high temperature environments up to 150°C and features a power dissipation of 150mW. Its stable voltage characteristics across temperature ranges ensure consistent circuit performance, making it ideal for space-constrained designs. Quickly order online and get secure, fast shipping to incorporate this essential component into your projects with confidence and ease.
Order your ROHM EDZVFH30B series high-reliability zener diode today and ensure precise voltage regulation in your automotive or electronic circuits.
