ROHM RGT16TM65DGC9 Power IGBT Switch
The RGT16TM65D is a high-performance 650V trench IGBT designed for efficient switching in inverter, power supply, and motor drive applications. Featuring low saturation voltage, fast switching, and built-in recovery diode, it ensures reliable operation under inductive loads. Its fast and soft recovery features reduce switching losses and electromagnetic interference. The device supports a collector current of up to 8A, with a pulse capability of 24A, making it suitable for high-frequency switching environments. Its small package ensures easy integration into various power electronic systems, providing long-lasting durability and consistent performance.
ROHM RGT16TM65DGC9 Power IGBT Switch Specifications:
- Collector Voltage: 650V
- Collector Current: 8A (Tc=25°C), 5A (Tc=100°C)
- Pulsed Collector Current: 24A
- Gate-Emitter Voltage: +30V
- Power Dissipation: 22W (Pp)
- Operating Junction Temperature: -55°C to +175°C
- Storage Temperature: -55°C to +175°C
- Thermal Resistance (Junction-Case): 6.53°C/W
- Collector-Emitter Breakdown Voltage: 650V
- Gate Threshold Voltage: 5.0V to 7.0V
- Saturation Voltage: 1.65V at 8A, 25°C
- Recovery Diode: Built-in, reverse recovery time approximately 42ns
- Package: TO-220NFM
- RoHS Compliant and Pb-Free

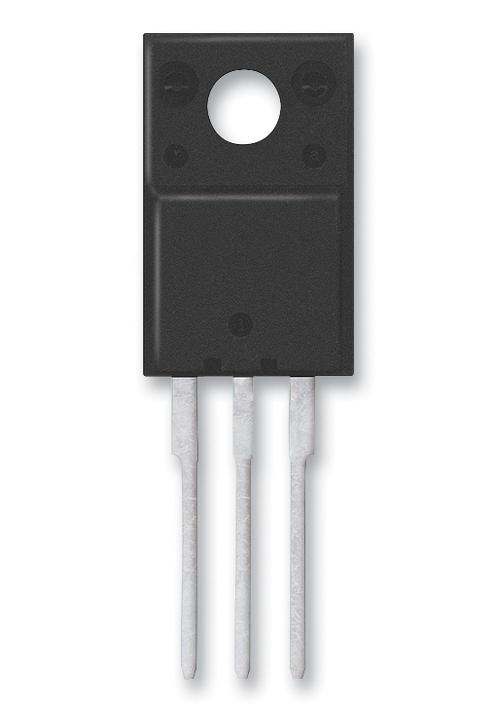

Buy the Buy ROHM RGT16TM65D Part Number RGT16TM65DGC9 Online
Experience reliable performance with the ROHM RGT16TM65D high-voltage trench IGBT designed for efficient switching in inverter, power supply, and motor drive systems. Featuring low saturation voltage, rapid switching capabilities, and built-in recovery diode, this device reduces switching losses and EMI. Its 650V voltage rating and 8A continuous current make it ideal for high-frequency, high-power applications. Compact and RoHS compliant, it ensures easy integration and long-term durability in a variety of industrial and electronic systems. Purchase online today for quality and performance you can trust.
Get ROHM RGT16TM65D today—built for precision and long-lasting durability in high-voltage switching applications.
Frequently Asked Questions
Where can I buy ROHM RGT16TM65DGC9?
You can click on the BUY or RFQ button to purchase RGT16TM65DGC9 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGT16TM65DGC9?
You can download the RGT16TM65DGC9 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGT16TM65DGC9?
ROHM
