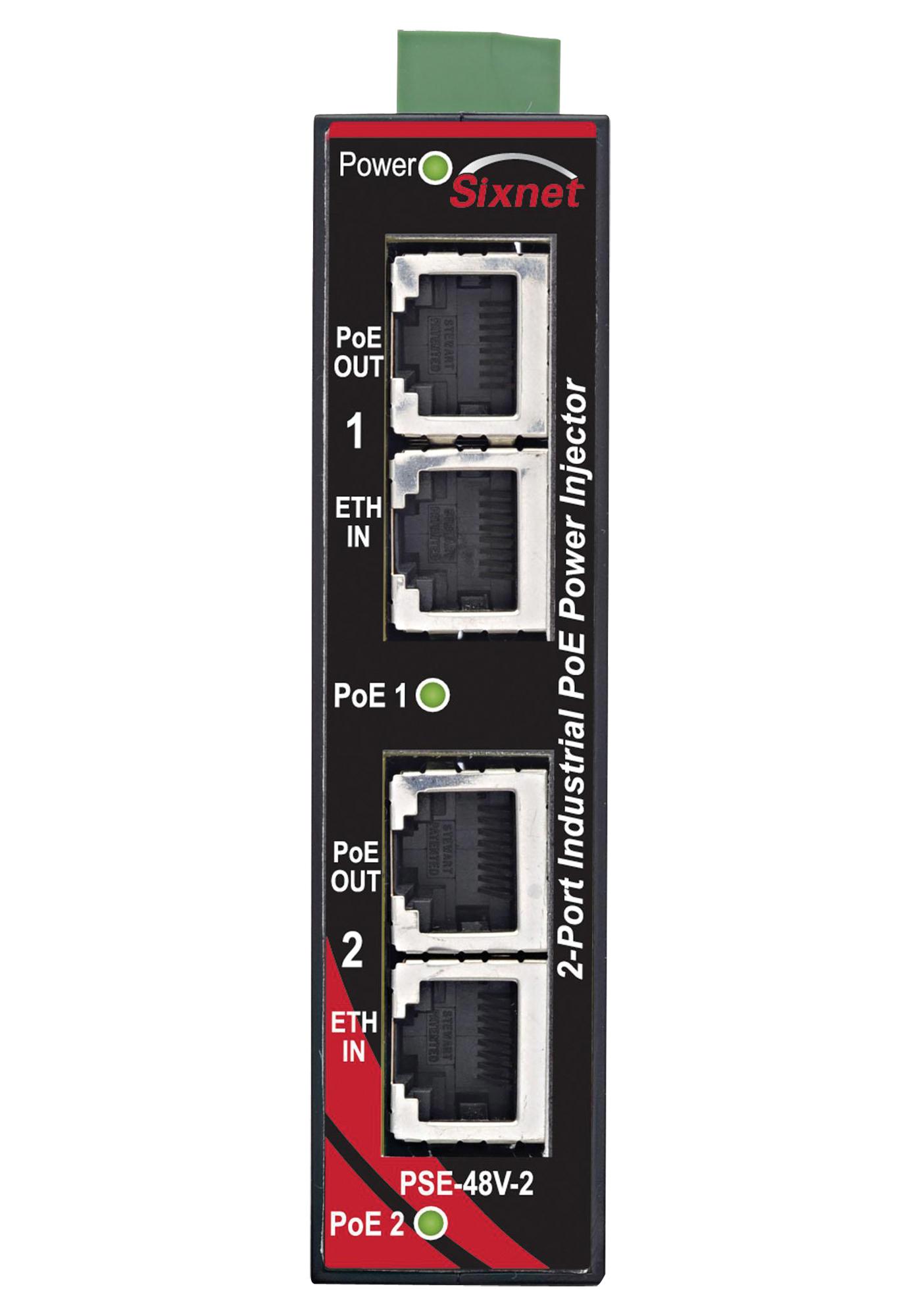

Red Lion Controls EBPSE48V2A Industrial Power over Ethernet Injector
This industrial PoE injector provides reliable power and data transmission over Ethernet in rugged environments, supporting IEEE 802.3af standards. It powers one or two devices via 48 VDC with up to 15.4 watts per port, ideal for industrial automation, security cameras, and process control. Designed for -40 to 75°C operation, it features over-temperature, over-current, over-voltage, and transient protection. The compact DIN rail or panel-mountable design ensures easy installation. Suitable for harsh industrial settings, it offers high MTBF and compliance with safety and EMC standards, ensuring long-lasting performance.
Red Lion Controls EBPSE48V2A Industrial Power over Ethernet Injector Specifications:
- Power output: 48 VDC @ 15.4 Watts per channel
- Supports IEEE 802.3af PoE standard
- Ethernet port: 10/100BaseTX, IEEE 802.3 / 802.3u
- Input voltage: 45-56 VDC (for 48V model), 18-30 VDC (for 24V model)
- Dimensions: 4 x 1 x 3.3 inches (10 x 2.5 x 8.3 cm)
- Operating temperature: -40 to +75°C
- Storage temperature: -40 to +85°C
- Weight: approximately 0.17 kg (0.25 lbs)
- Certifications: UL508, CSA C22.2, EN61010-1, FCC, CE, UL1604, IEC61000-6-4
- Environmental protection: IP30, vibration and shock resistant
- MTBF: over 1,000,000 hours
- Mounting: DIN rail or panel mounting, IP30 protection
Buy the Red Lion Series Industrial PoE Injector: EBPSE48V2A
Enhance your industrial communication network with this reliable PoE injector, supporting IEEE 802.3af standards and rugged operation from -40 to 75°C. It supplies up to 15.4 watts per port over 48 VDC, ideal for security, automation, and process control devices. Its compact design enables easy DIN rail or panel mounting, with high MTBF for long-term use. Protect your equipment with over-voltage and over-current protections, ensuring uninterrupted operation in harsh environments. Purchase online now for seamless integration and dependable performance in your industrial applications.
Order your Red Lion Series Industrial PoE Injector EBPSE48V2A today and ensure reliable, high-performance power and data transmission for your industrial network.
Frequently Asked Questions
Where can I buy Red Lion Controls EBPSE48V2A?
You can click on the BUY or RFQ button to purchase EBPSE48V2A from an authorized Red Lion Controls distributor.
How do I troubleshoot issues or seek technical support for part EBPSE48V2A?
You can download the EBPSE48V2A datasheet or visit the Red Lion Controls website for support.
Who is the manufacturer of EBPSE48V2A?
Red Lion Controls
