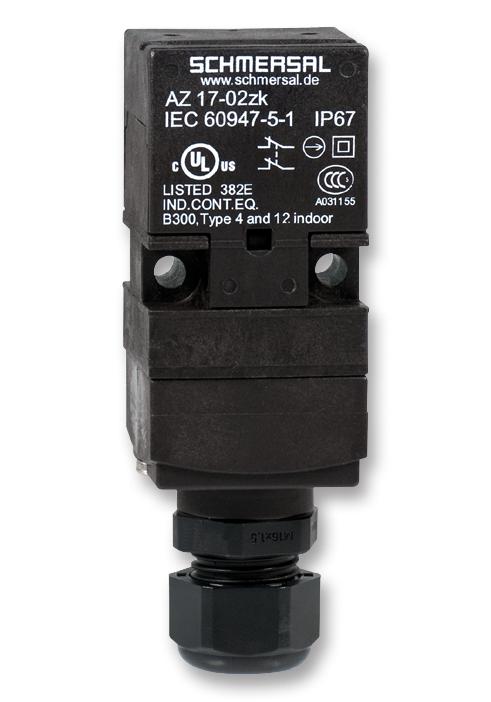

Schmersal AZ1702ZRK Safety Switch
The AZ 17-02ZRK safety switch from SCHMERSAL features a thermoplastic enclosure, multiple coding, and double-insulation for reliable operation in industrial environments. Designed with high contact reliability for low voltages and currents, it is not sensitive to dirty conditions thanks to a patented roller system. The switch includes 8 actuating planes, a cable gland M16, and a compact size of 30x60x30 mm, making it suitable for sliding and hinged guard applications with a mechanical life exceeding 1,000,000 operations. Its IP67 protection ensures durability in harsh ambient conditions, adhering to EN ISO 13849-1 standards.
Schmersal AZ1702ZRK Safety Switch Specifications:
- Material of the housing: Thermoplastic, glass-fibre reinforced, self-extinguishing
- Material of contacts: Silver
- Housing coating: None
- Weight: 85g
- Design of electrical connection: IDC
- Cable section: Min 0.75 mm², Max 1 mm²
- Mechanical life: > 1,000,000 operations
- Latching force: 30N
- Positive break force: 17N
- Max. actuating speed: 0.2 m/s
- Protection class: IP67 according to IEC/EN 60529
- Switching principle: Creep circuit element
- Number of auxiliary contacts: 2
- Number of safety contacts: 2
- Rated impulse withstand voltage Uno: 250V
- Rated insulation voltage U: 250V
- Thermal test current Ine: 6 A
- Utilisation category: AC-15 at 230V/4A, DC-13 at 24V/4A
- Max. fuse rating: 6 A
- Dimensions of the sensor: Width 30mm, Height 85mm, Length 30mm
- Ambient conditions protection: IP67
Buy the SCHMERSAL AZ 17-02ZRK U+2013 Reliable Safety Switch for Industrial Applications
Enhance your safety installations with the SCHMERSAL AZ 17-02ZRK safety switch, featuring robust thermoplastic housing, high contact reliability, and IP67 protection. With over 1 million operations, it ensures long-lasting performance in demanding environments. Its multiple coding options, compact size of 30x60x30 mm, and IP67 rating make it ideal for sliding and hinged guard safety applications. Easy to install, complying with EN ISO 13849-1 standards, this switch offers a dependable solution for industrial safety systems. Purchase online today for superior safety and durability.
Buy SCHMERSAL AZ 17-02ZRK now and experience unmatched reliability and performance in industrial safety systems.
Frequently Asked Questions
Where can I buy Schmersal AZ1702ZRK?
You can click on the BUY or RFQ button to purchase AZ1702ZRK from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part AZ1702ZRK?
You can download the AZ1702ZRK datasheet or visit the Schmersal website for support.
Who is the manufacturer of AZ1702ZRK?
Schmersal
