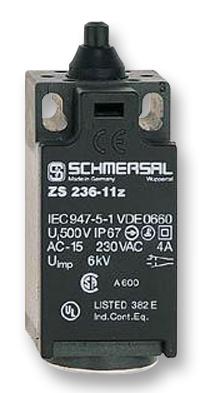

SCHMERSAL ZS23611ZM20 Position Switch
The ZS 236-11Z is a versatile position switch housed in a thermoplastic enclosure designed for safety and automation applications. It features snap-action contact with constant contact pressure and a wide operating temperature range of -30°C to +80°C. The switch includes options for various actuators, robust IP67 protection, and compliance with EN ISO 13849-1 safety standards. It supports cable entries, has high switching endurance of 20 million operations, and is suitable for safety functions in industrial automation, making it ideal for machinery and safety interlock systems.
SCHMERSAL ZS23611ZM20 Position Switch Specifications:
- Enclosure Material: Thermoplastic, glass-fibre reinforced, self-extinguishing
- Protection Class: IP67
- Temperature Range: -30°C to +80°C
- Switching Principle: Snap switch element
- Number of Contacts: 1 normally open (NO) and 1 normally closed (NC)
- Contact Material: Silver, gold-plated contacts
- Switching Life: 20 million operations
- Cycle Frequency: Max. 5000 cycles per hour
- Operating Force: 9 N minimum
- Switching Time: <3ms
- Bounce Duration: <5.5ms
- Switchover Time: <5.5ms
- Rated Impulse withstand voltage: 6kV
- Rated Insulation Voltage: 500V
- Rated Current: 10A
- Ambient Temperature: -30°C to +80°C
- Weight: 52g
- Cable Entry: M20x 1.5
- Housing Mounting: To EN 50047
- Certifications: EN ISO 13849-1, CE, CCC
Buy the Buy SCHMERSAL ZS 236-11Z Position Switch Part Number ZS23611ZM20 Online
Order the SCHMERSAL ZS 236-11Z position switch online today for reliable safety and automation performance. This switch features a robust thermoplastic enclosure, IP67 protection, and a switching life of 20 million operations. Its versatile actuator options, quick response time, and compliance with safety standards make it ideal for machinery safety, interlocks, and process control systems. Enjoy fast, secure online purchasing with full technical details and support to ensure seamless integration into your industrial applications.
Get SCHMERSAL ZS 236-11Z safety switch today—built for high durability and reliable safety functions in industrial automation.
Frequently Asked Questions
Where can I buy SCHMERSAL ZS23611ZM20?
You can click on the BUY or RFQ button to purchase ZS23611ZM20 from an authorized SCHMERSAL distributor.
How do I troubleshoot issues or seek technical support for part ZS23611ZM20?
You can download the ZS23611ZM20 datasheet or visit the SCHMERSAL website for support.
Who is the manufacturer of ZS23611ZM20?
SCHMERSAL
