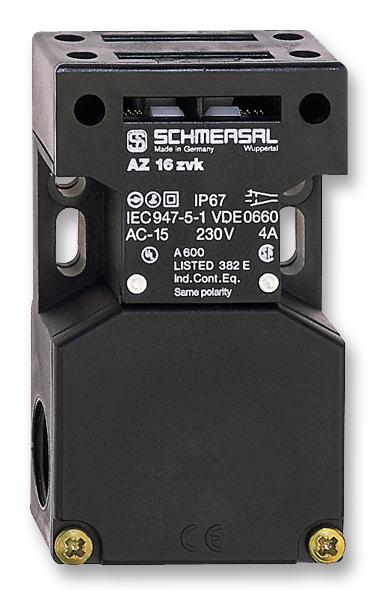

Schmersal AZ16ZVRKM20 Safety Switch
The AZ 16 Safety Switch features a thermoplastic enclosure, double insulation, and large wiring compartment. It complies with EN ISO 13849-1, EN 60947-5-1 standards, and offers high contact reliability at low voltages and currents. The switch has a compact size of 52mm x 90mm x 30mm, with a IP67 protection class, suitable for industrial applications requiring safety interlocking, with options for auxiliary contacts, LED indication, and various actuator types. It is designed for durability, vibration damping, and ease of installation, making it ideal for safeguarding machinery and personnel.
Schmersal AZ16ZVRKM20 Safety Switch Specifications:
- Material of housing: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Contact Material: Silver
- Dimensions: 52mm width, 90mm height, 30mm length
- Protection Class: IP67 to IEC/EN 60529
- Electrical connection: Screw connection, 0.75 mm² min, 2.5 mm² max
- Mechanical life: 20 million operations
- Latching force: 30 N
- Ambient Temperature: -30°C to +80°C
- Rated impulse withstand voltage: 6 kV
- Rated insulation voltage: 500 V
- Utilisation category: AC-15 at 230 V/4 A, DC-13 at 24 V/4 A
- Rated insulation voltage: Ui: 500 V
- Max. Fuse Rating: 6 A
- Switching principle: Creep circuit element, normally open contact (NO), Opener (NC)
- Electrical operation: 20 million operations
- Protection: Encapsulated, IP67, suitable for harsh environments
Buy the Schmersal Series AZ 16 Safety Switch: AZ16ZVRK
Secure your machinery with the high-quality Schmersal series AZ 16 safety switch. Featuring durable thermoplastic enclosure, IP67 protection, and high contact reliability, this switch ensures personnel safety and compliance with industrial standards. Its compact dimensions of 52mm x 90mm x 30mm facilitate easy installation in tight spaces. With a mechanical life of 20 million operations and options like auxiliary contacts and LED indicators, it provides dependable performance for safety interlocking and guarding applications. Buy online now for fast, reliable delivery.
Order your Schmersal Series AZ 16 Safety Switch today and give your safety systems the dependable quality they deserve to ensure reliable machine safeguarding.
