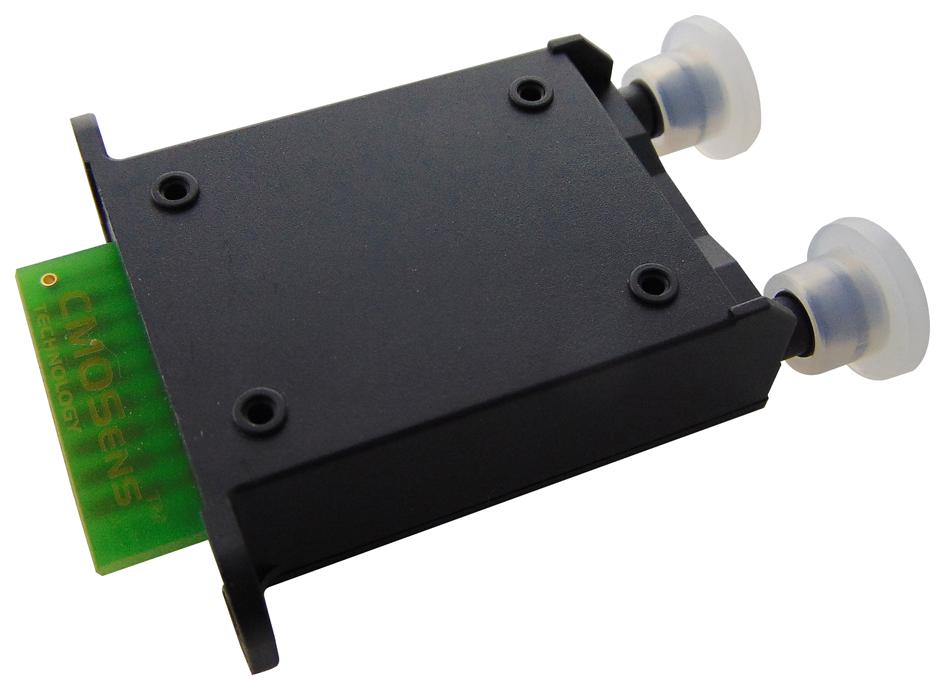

SENSIRION ASF1430 Mass Flow Sensor
The ASF1400 bidirectional mass flow meter uses advanced CMOSens® sensor technology for highly accurate gas flow measurement across four orders of magnitude. It features a wide dynamic range from 0.01 sccm to 400 sccm, ultra-fast response time, and temperature compensation for precise readings unaffected by ambient conditions. Suitable for process control, medical, HVAC, and gas metrology, it includes RS-232 interface for easy integration, with a rugged PBT housing that withstands overpressures up to 2 bar. The device measures true mass flow and internal sensor temperature with excellent repeatability and minimal pressure drop.
SENSIRION ASF1430 Mass Flow Sensor Specifications:
- Flow Range: -400 to 400 sccm
- Dynamic Range: 0.01 sccm to 400 sccm
- Resolution: 0.09 sccm at 400 sccm, 0.01 sccm at < 10 sccm
- Lowest Detectable Flow: 0.0154 sccm
- Pressure Drop: 120 Pa at 400 sccm and 1 bar pressure
- Repeatability: 0.0026 % FS
- Accuracy: ±1 % of full scale
- Overpressure Resistance: 2 bar
- Response Time: 142 to 1280 ms (adjustable with resolution)
- Supply Voltage: 7-18 V DC
- Power Consumption: 20-27 mA (depending on load)
- Housing: Rugged PBT, withstands overpressure of 2 bar
- Gas Types: Air and Nitrogen (other gases available on request)
- Interface: RS-232, configurable via commands
- Physical Dimensions: Length 45 mm, Width 40 mm, Height 15.5 mm
Buy the Buy Sensirion ASF1400 Part Number ASF1430 Online
Order the Sensirion ASF1400 bidirectional mass flow sensor online today for accurate gas measurement solutions. Featuring CMOSens technology, it offers wide dynamic range, rapid response, and robust construction suitable for process control, medical, HVAC, and gas metrology. Easy to integrate via RS-232, it measures true mass flow unaffected by pressure or temperature variations. The rugged housing withstands overpressures up to 2 bar, making it ideal for demanding environments. Purchase now for reliable, high-performance gas flow measurement tailored to your industrial or scientific needs.
Get Sensirion ASF1400 today—built for precise, reliable gas flow measurement in industrial and medical applications.
Frequently Asked Questions
Where can I buy SENSIRION ASF1430?
You can click on the BUY or RFQ button to purchase ASF1430 from an authorized SENSIRION distributor.
How do I troubleshoot issues or seek technical support for part ASF1430?
You can download the ASF1430 datasheet or visit the SENSIRION website for support.
Who is the manufacturer of ASF1430?
SENSIRION
