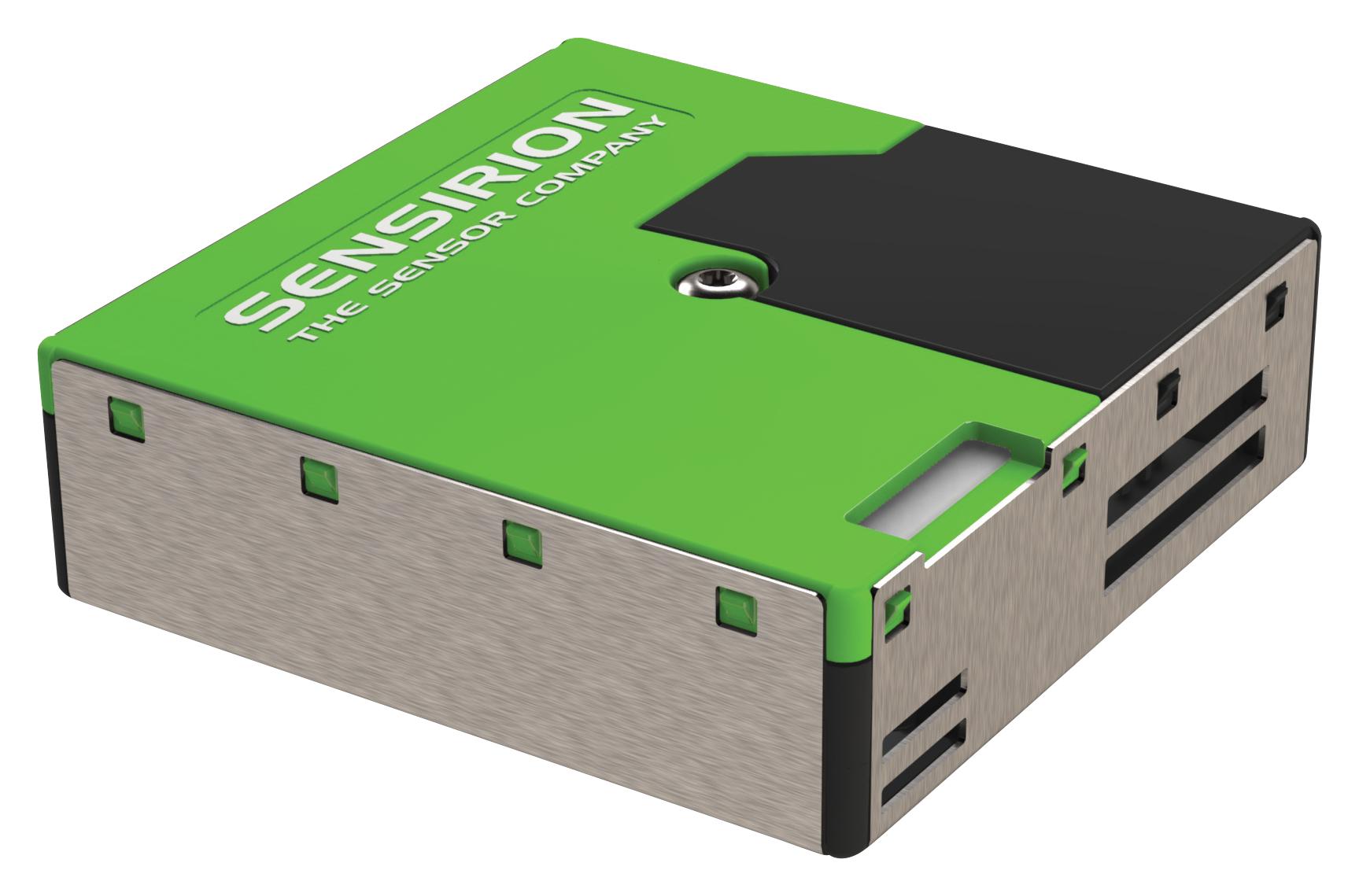

SENSIRION SPS30 Particulate Matter Sensor
The SPS30 Particulate Matter Sensor is a compact, laser scattering sensor designed for accurate air quality monitoring. It features advanced contamination resistance, long-term stability, and superior particle size binning, enabling precise detection of environmental dust and particles. Its small size of 41 x 41 x 12 mm makes it ideal for wall-mounted or space-constrained applications. Fully calibrated with digital output via UART and I2C interfaces, it offers a measurement lifetime of over eight years and ensures high reliability for environmental monitoring solutions.
SENSIRION SPS30 Particulate Matter Sensor Specifications:
- Size: 41 x 41 x 12 mm
- Measurement principle: Laser scattering
- Measurement range: 0 to 1000 ug/m³ (mass), 0 to 3000 tc/ms (number)
- Mass concentration accuracy: +10 % (0-100 ug/m³), +10 % (100-1000 ug/m³)
- Resolution: 1 ug/m³ (mass), variable for particle size bins
- Particle size range: PM1.0 0.3-1.0 um, PM2.5 0.3-2.5 um, PM10 0.3-10 um
- Sampling interval: 1 sec
- Start-up time: <8 sec
- Lifetime: Over 8 years of operation
- Weight: 26 g
- Supply voltage: 4.5-5.5 V
- Power consumption: Idle <8 mA, Measurement mode ~60 mA
- Interfaces: UART (115,200 bit/s), I2C
- Operating temperature: -10°C to +60°C
- Operating humidity: 0-95% RH (non-condensing)
- Certifications: UL, IEC standards
Buy the Buy Sensirion SPS30 Particulate Matter Sensor Online
Experience precise air quality monitoring with the Sensirion SPS30 particulate matter sensor. Its compact size and advanced laser scattering technology ensure accurate detection of dust and particles in environmental applications. With a measurement lifetime exceeding eight years and fully calibrated digital output options via UART and I2C, this sensor is ideal for space-constrained and professional monitoring systems. Improve your environmental analysis today by purchasing this high-quality, reliable sensor online for industrial, commercial, or consumer air quality control solutions.
Order your Sensirion SPS30 Particulate Matter Sensor today and enhance your air quality monitoring with our reliable, long-lasting sensor solutions.
