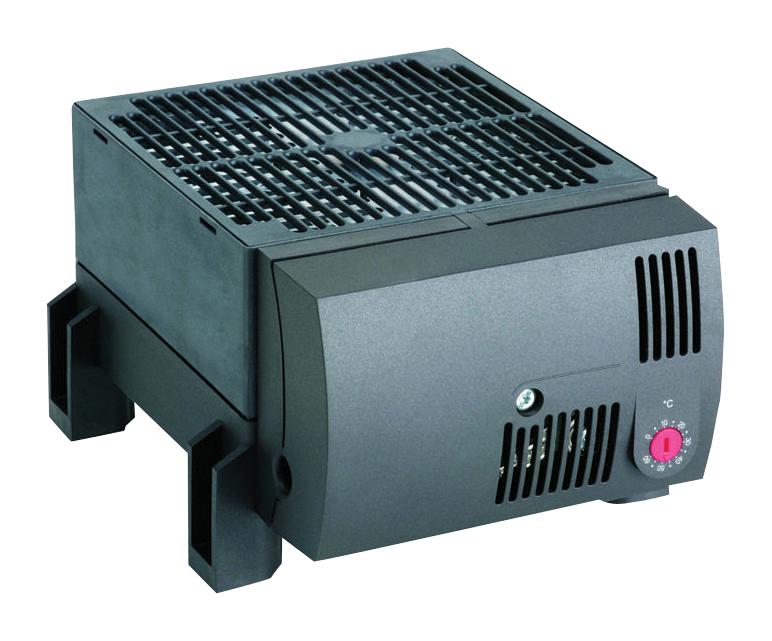

STEGO 03051000 High-Performance Fan Heater
The STEGO CR 030 is a compact, high-performance fan heater designed to prevent condensation and frost formation within enclosures housing electrical and electronic components. Its plastic housing provides double insulation and protection against contact. The heater incorporates an integrated thermostat or pre-set hygrostat for precise temperature or humidity control. It's suitable for stationary installation at the bottom of enclosures, with the CR 130 recommended for wall mounting. Key features include a high-performance cartridge heating element, temperature safety cut-out, extruded aluminum profile, and a ball-bearing axial fan providing airflow of 160 m³/h. It is double insulated and protected to IP20 standards.
STEGO 03051000 High-Performance Fan Heater Specifications:
- operating_temperature: -45 to +70 °C (-49 to +158 °F)
- operating_humidity: max. 90 % RH (non-condensing)
- protection_type: IP20
- protection_class: II (double insulated)
- heating_capacity: 950 W
- voltage: AC 230 V, 50/60 Hz
- current: 6.3 A
- thermostat_range: 0 to +60 °C
- hygrostat_setting: 65 % RH (factory-set)
- fan_airflow: 160 m³/h
- fan_service_life: 50,000 h at +25 °C (+77 °F)
- connection_max_size: 2-pole max. 2.5 mm²
- connection_torque: 0.8 Nm max.
- casing_material: plastic according to UL94 V-0, black
- mounting: screw fixing (M5)
- airflow_direction: vertical airflow (air outlet up)
- dimensions: 168 x 145 x 100 mm
- weight: approx. 1.4 kg
- approvals: VDE UL File No. E234324 EAC
