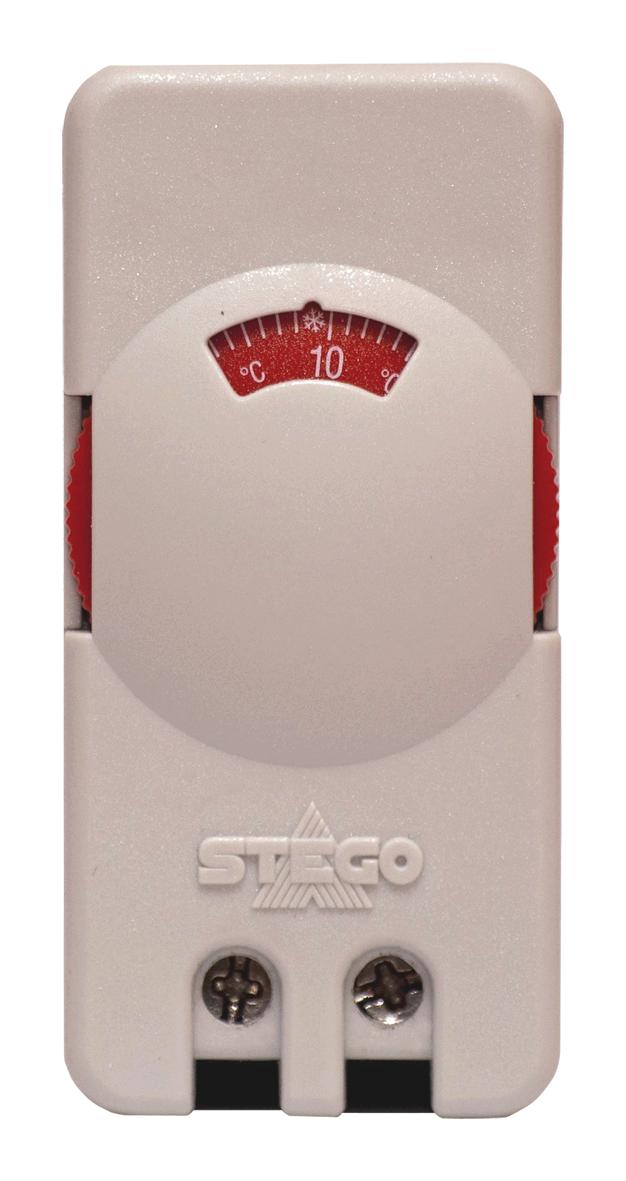

STEGO 01115000 Thumbwheel Thermostat Regulator
The STEGO 01115.0-00 thumbwheel thermostat is a versatile SPST regulator suitable for a wide range of applications. Its compact design and adjustable thumbwheel setting allow for precise temperature control, while the small hysteresis ensures stable operation. It's ideal for regulating heaters, filter fans, heat exchangers, or switching signal devices when temperature limits are exceeded. The thermostat is DIN rail mountable and features a robust construction with UL 94V-0 plastic housing and snap-action contacts for reliable performance.
STEGO 01115000 Thumbwheel Thermostat Regulator Specifications:
- SwitchingDifference: 7 °F (4 K) ± 5.4 °F (3 K)
- SensorElement: Thermostatic bimetal
- ContactType: Snap-action contact
- ServiceLife: > 100,000 cycles
- MaxSwitchingCapacityResistiveAC: 15 A @ AC 120 V
- MaxSwitchingCapacityInductiveAC: 2 A @ AC 120 V
- MaxSwitchingCapacityResistiveAC250V: 10 A @ AC 250 V
- MaxSwitchingCapacityInductiveAC250V: 2 A @ AC 250 V
- MaxSwitchingCapacityDC: 30 W @ DC 24-72 V
- MaxInrushCurrentAC: 16 A for 10 sec.
- Connection: 2-pole terminal, clamping torque 1 Nm max.
- WireSize: AWG 14 max. (2.5 mm²)
- HousingMaterial: Plastic, UL 94V-0
- Mounting: Clip for 35 mm DIN rail, EN 60715
- MountingPosition: Vertical
- OperatingTemperature: -49 to +176 °F (-45 to +80 °C)
- OperatingHumidity: max. 95 %RH (non-condensing)
- Dimensions: 2.76 x 1.3 x 1.65” (70 x 33 x 42 mm)
- Weight: approx. 1.8 oz. (50 g)
- ProtectionType: IP20
- Approvals: UL File No. E164102, VDE, GOST-R
