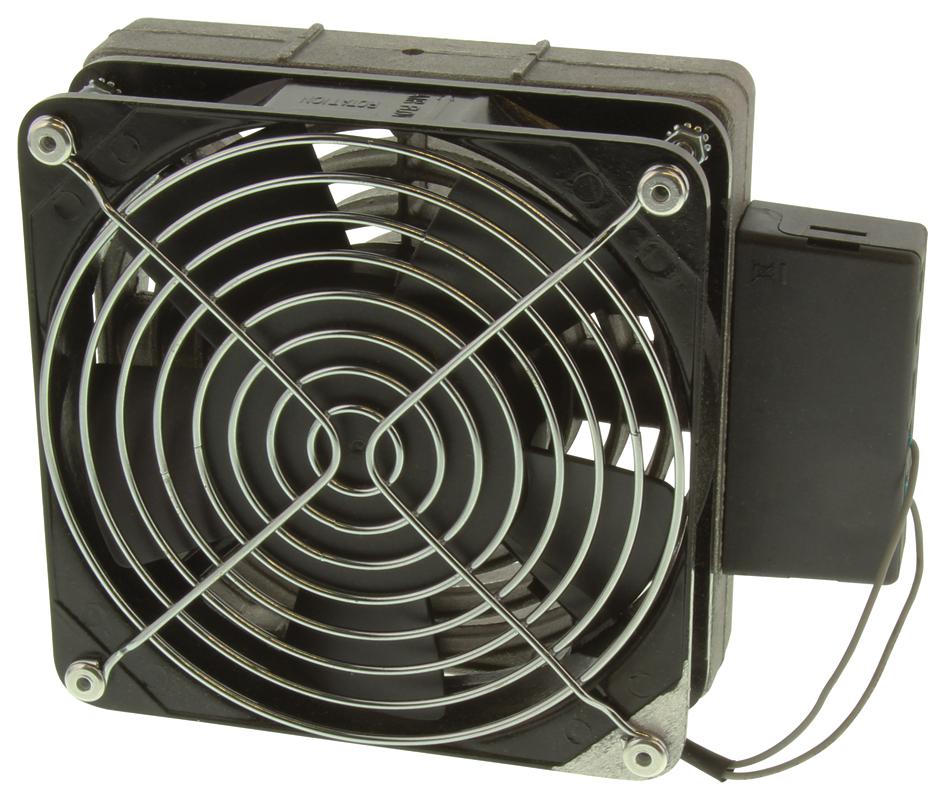

STEGO 03115900 Fan Heater with Fan
The STEGO 03115.9-00 fan heater is a space-saving solution for maintaining a stable temperature within enclosures housing electrical and electronic components. Its compact, flat design allows for easy integration, while the high air through-flow ensures efficient heat dissipation. The integrated temperature safety cut-out protects against overheating in the event of fan failure, and the clip fixing provides secure mounting. Ideal for industrial applications requiring precise temperature control and protection against condensation and frost.
STEGO 03115900 Fan Heater with Fan Specifications:
- Heating element: high performance cartridge
- Temperature safety cut-out: automatic reset
- Heater body: die-cast aluminium
- Connection: 3-pole screw connector 2.5mm, clamping torque 0.8Nm max.
- Connection casing: plastic according to UL94 V-0, black
- Mounting: clip for 35mm DIN rail, EN 60715
- Fitting position: vertical airflow (air outlet up)
- Operating / Storage temperature: -45 to +70°C (-49 to +158°F)
- Operating / Storage humidity: max. 90% RH (non-condensing)
- Protection type / Protection class: IP20 / I (earthed)
- Approvals: UL File No. E187294 (230V only: VDE)
- Axial fan ball bearing: service life 50,000h at 25°C (77°F)
- Connection axial fan: 2-pole screw connector 2.5mm² (L2/N2)
- Heating capacity: 400W
- Pre-fuse T: 4A / 5A
- Airflow min free flow: 108m³/h
- Dimensions: 119 x 151 x 47mm
- Weight (approx.): 0.9kg
